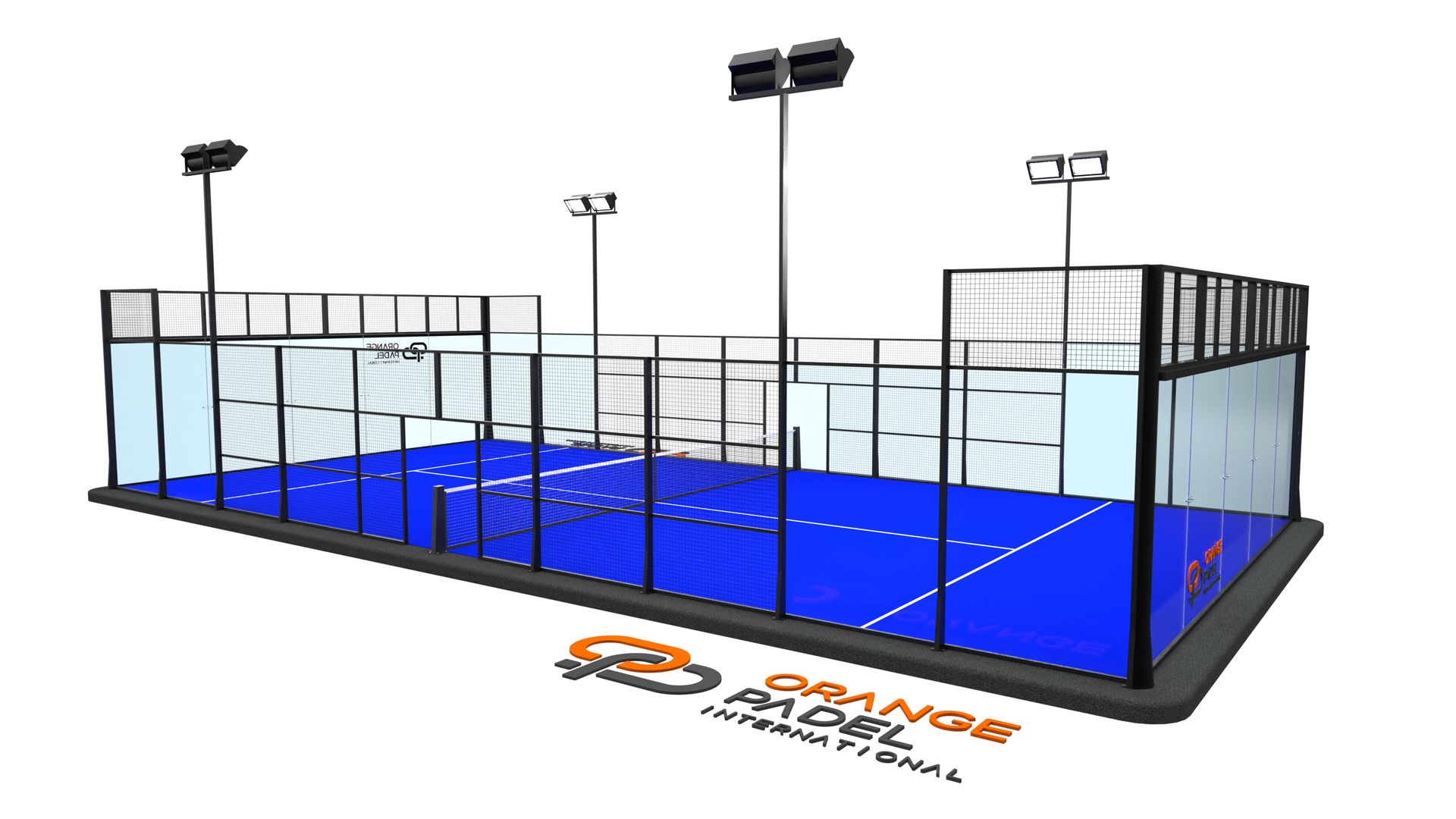

Orange Padel Pano Advantage

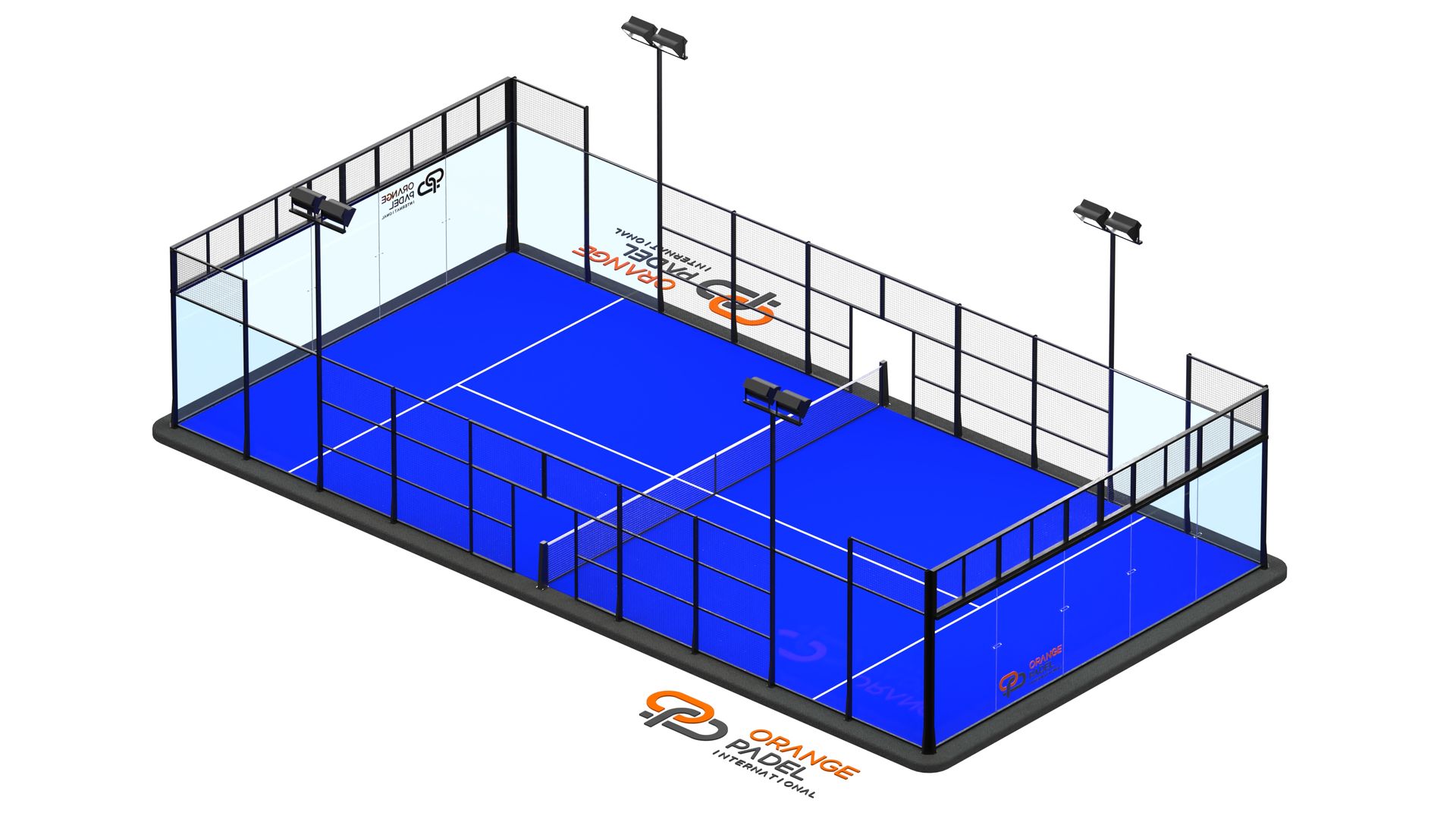

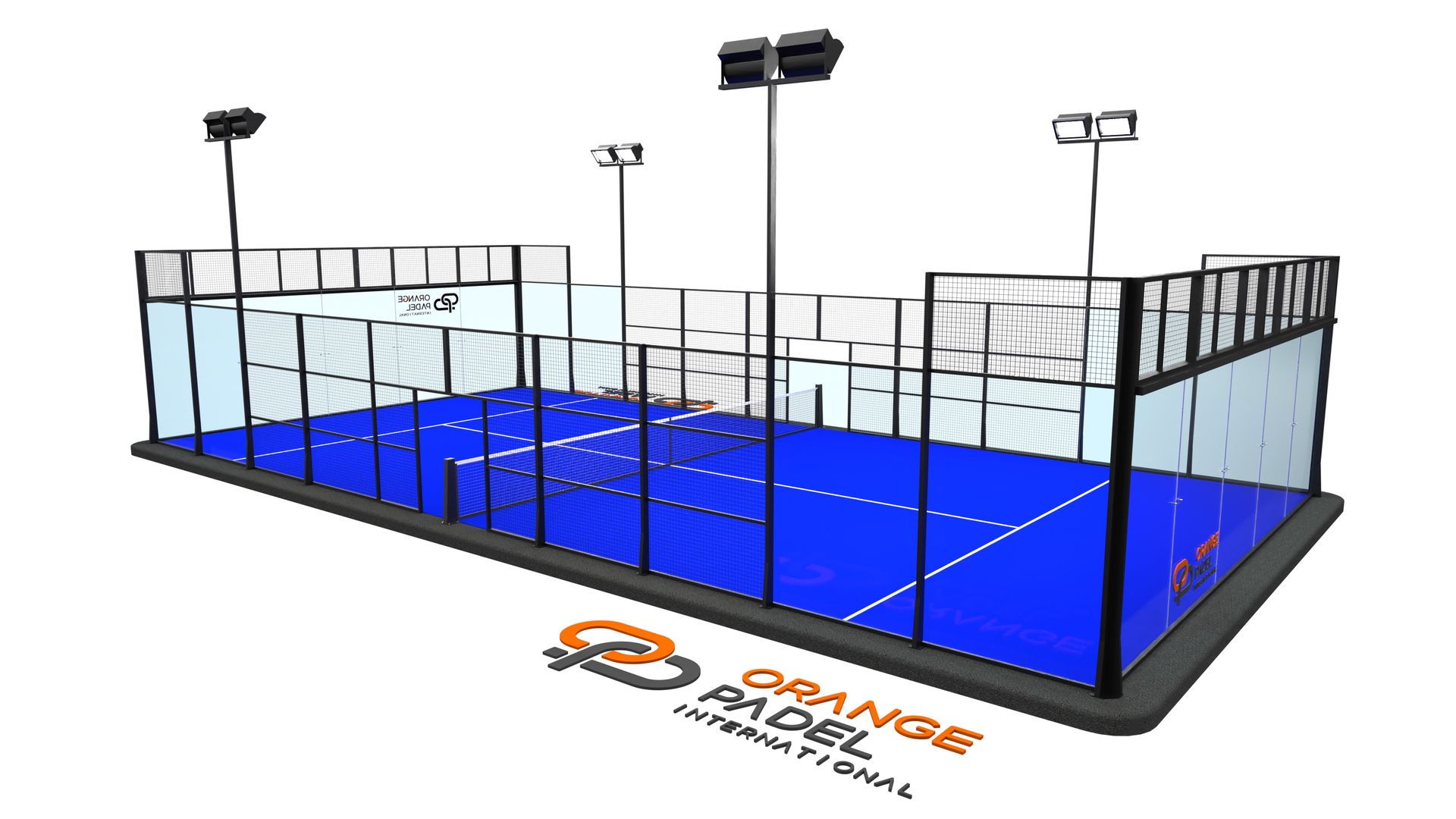

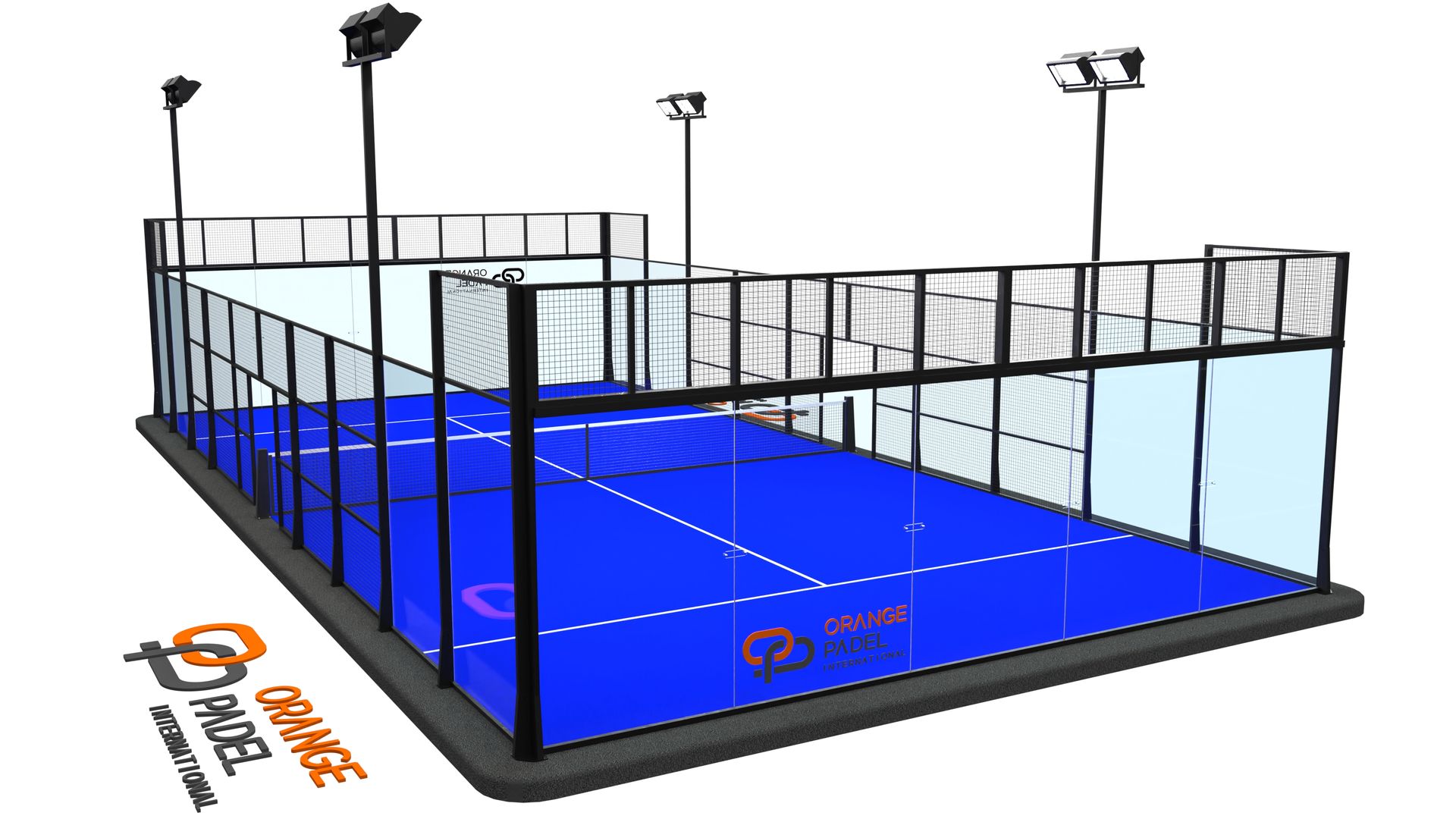

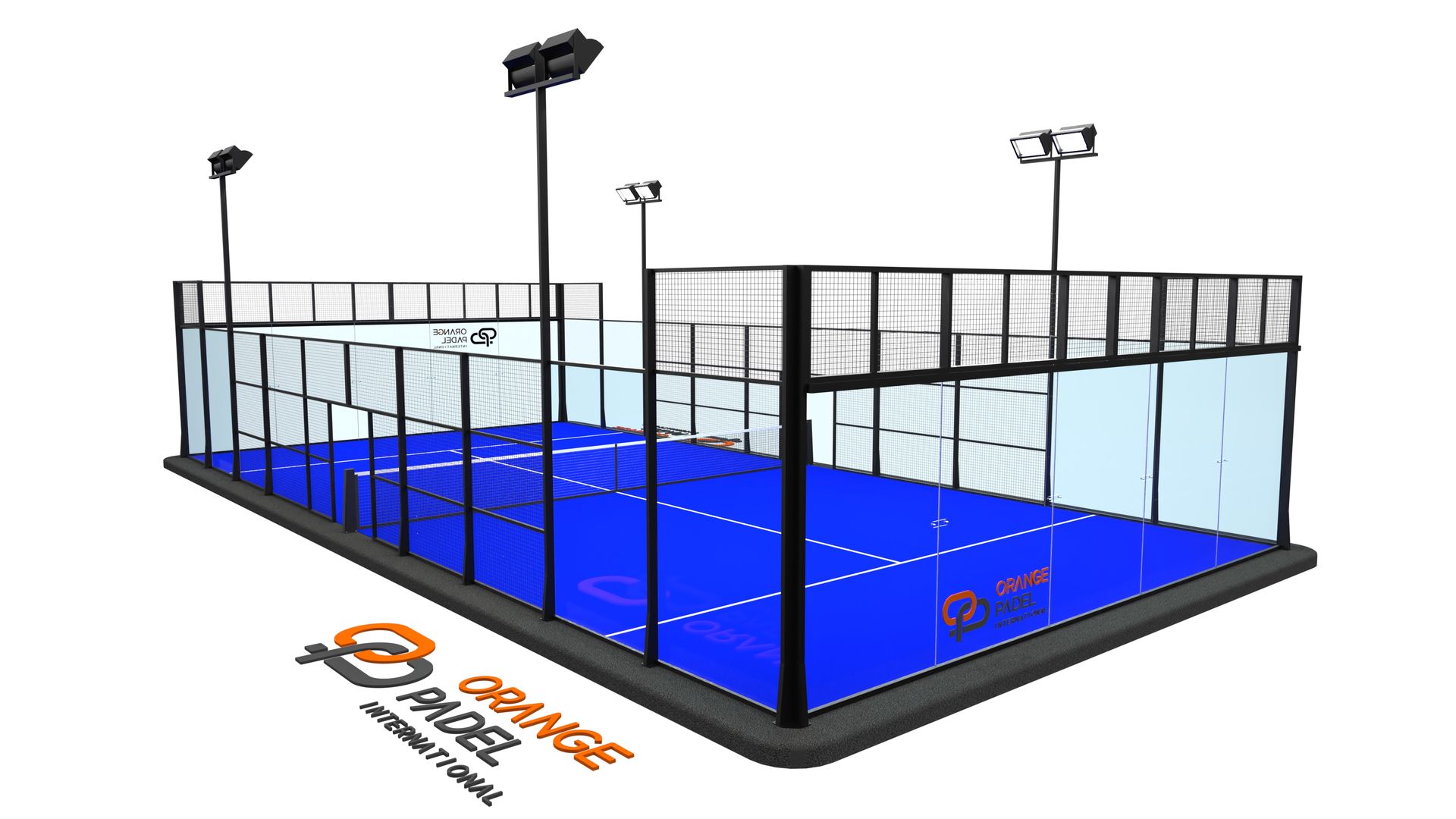

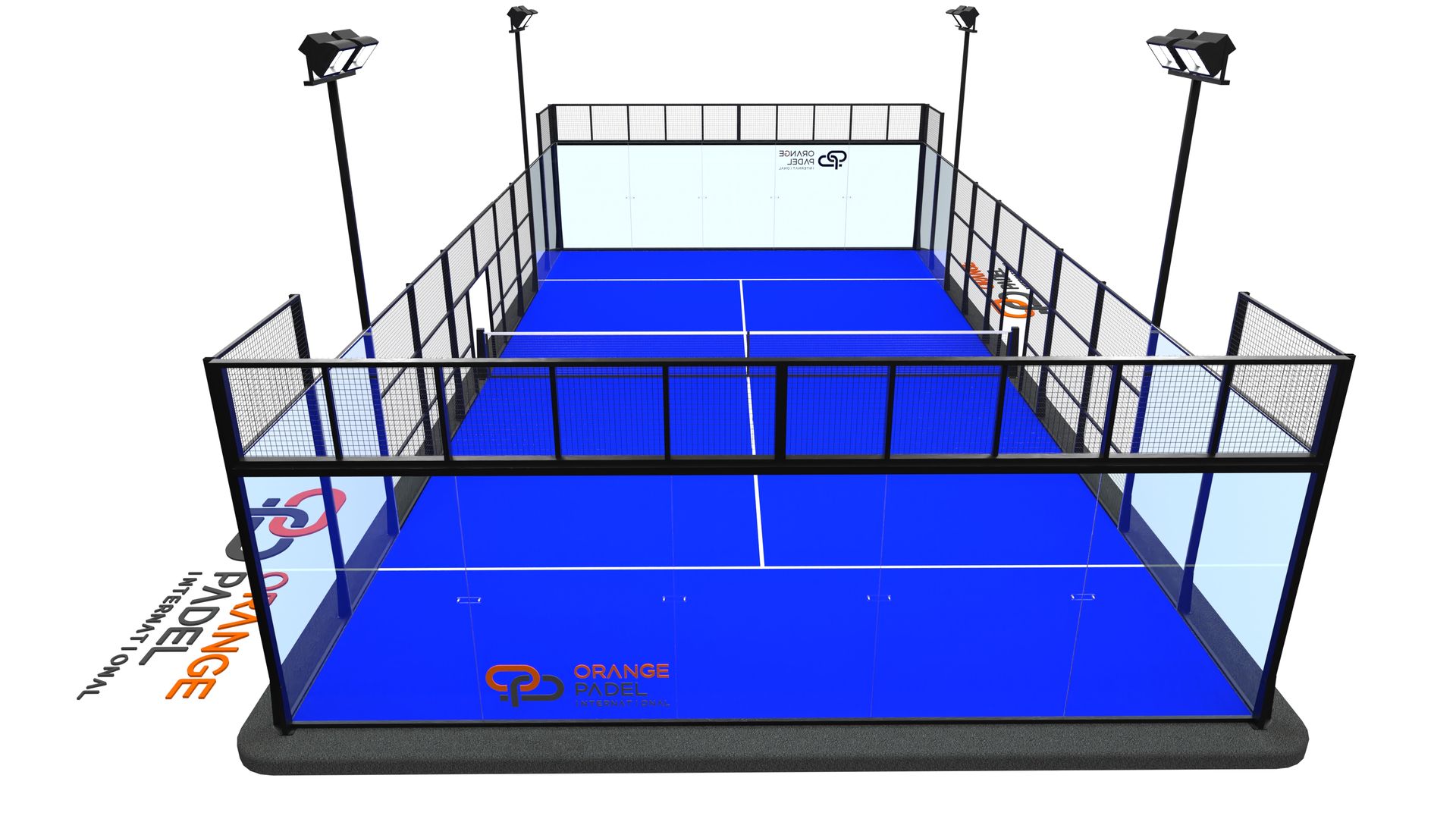

Orange Padel Pano Advantage is based on the model Advantage. It is a Panoramic Court with high quality components and detailed finishings. Orange Padel Pano Advantage is ideal for the international market due to its strength, easy assembly, low maintenance and very logistically efficient for shipping by sea and road. The full structure is manufactured of premium quality galvanized steel.
Orange Padel Pano Advantage

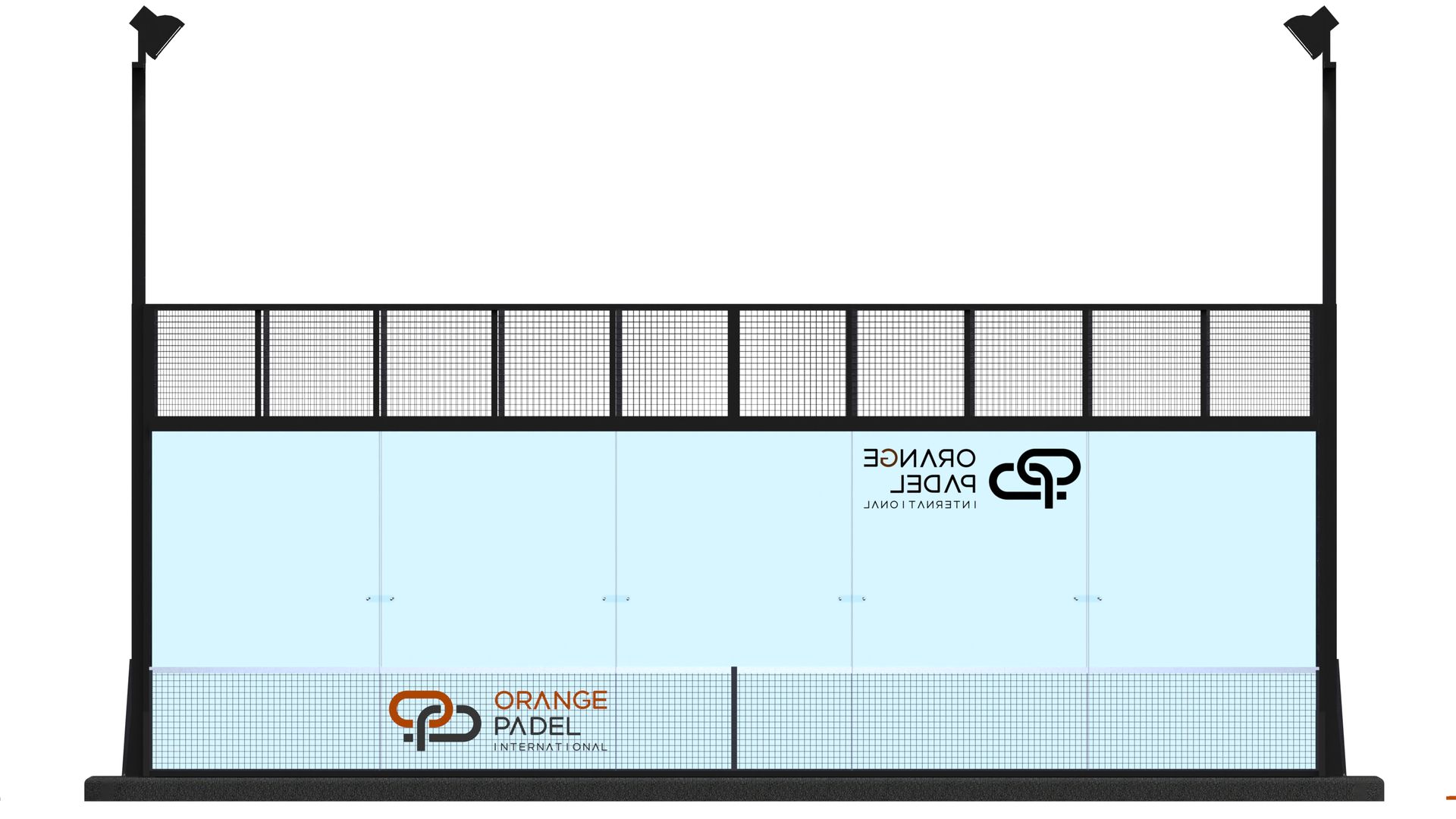

This Pano Advantage has its full panoramic court backsides made on 12mm tempered glass offering a perfect visualization for the spectator as well as giving the player a great feeling of a wide space. The full structure is manufactured with Orange Padel approved galvanized steel materials therefore the perfect choice for any climate all over the world. Due to the unique technique the structures can easily be levelled in case the foundation is 100% flat without losing the aesthetics of the steel structure.
The court can be used indoor and outdoor and is the perfect choice for national and international clubs, a real eyecatcher for center court locations.
Steel Structure
8 pillars of galvanised steel 3m length, 20 pillar of galvanized steel 4m length, 4 light post pillars of galvanized steel 6m length. 8 galvanised frame modules of 3x2m, 14 galvanised frame modules of 2x1m, 4 galvanized L modules of 2m x 3m.
All the frames are mounted and connected with individual stainless-steel screws and bolts. The frame modules are equipped with electrowelded mesh of 50 x 50 x4 mm reinforced with structural tube 40x40mm made of galvanized steel.
Rigid engineered structural beam for panorama made of galvanized steel with hot dip galvanised anchor plates. Galvanised metal hybrid frames and pillars made of structural tube 100 x 60 mm.
Electro-welded mesh
Electro-welded mesh of 50 x 50 x4 mm reinforced with galvanized structural tube
Glass
Homologated 12mm tempered safety glass .Standard 18 panels of 1995 x 2995mm. All glass panels are produced in compliance with CE, ISO and UNE EN 12150-1 standard
Artificial grass
Orange Padel grass is produced in compliance with ISO 9001 & 14001, 3 options: fibrillated, monofilament and curled
Nett Poles
Including an internal tension system.
Straight lighting system
8 LED lights 200w especially designed for padel courts, including 3m electric cable and protection fuses. 4 columns of galvanized steel for lighting installation.
