Orange Padel Pano Ultimate

Orange Padel Pano Ultimate is based on the model Ultimate. It is a Panoramic Court with high quality components and detailed finishings. Orange Padel Pano Ultimate is ideal for the international market due to its strength, easy assembly, low maintenance and very logistically efficient for shipping by sea and road. The full structure is manufactured of premium quality galvanized steel.

Technical Sheet

Orange Padel Pano Ultimate

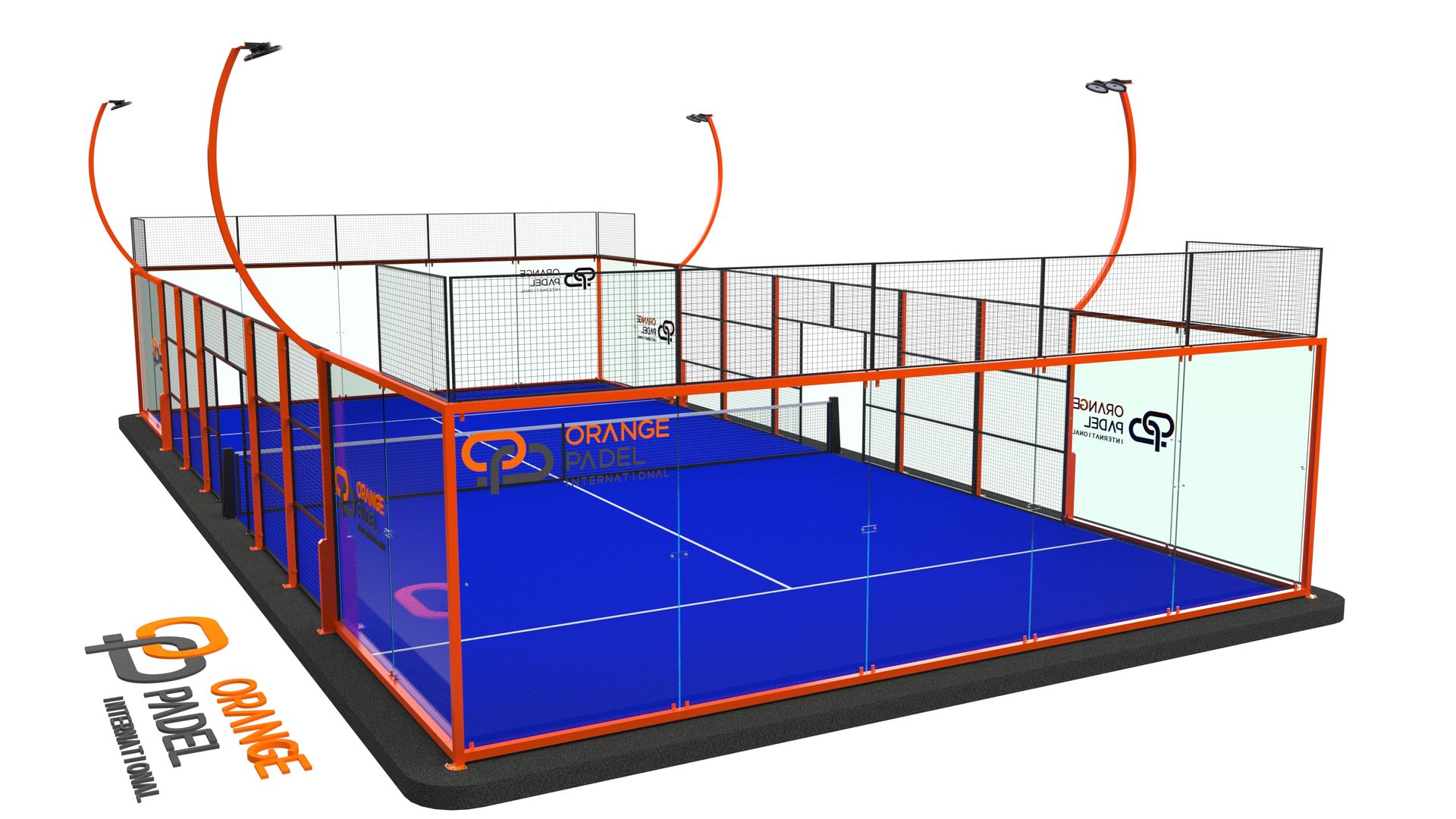

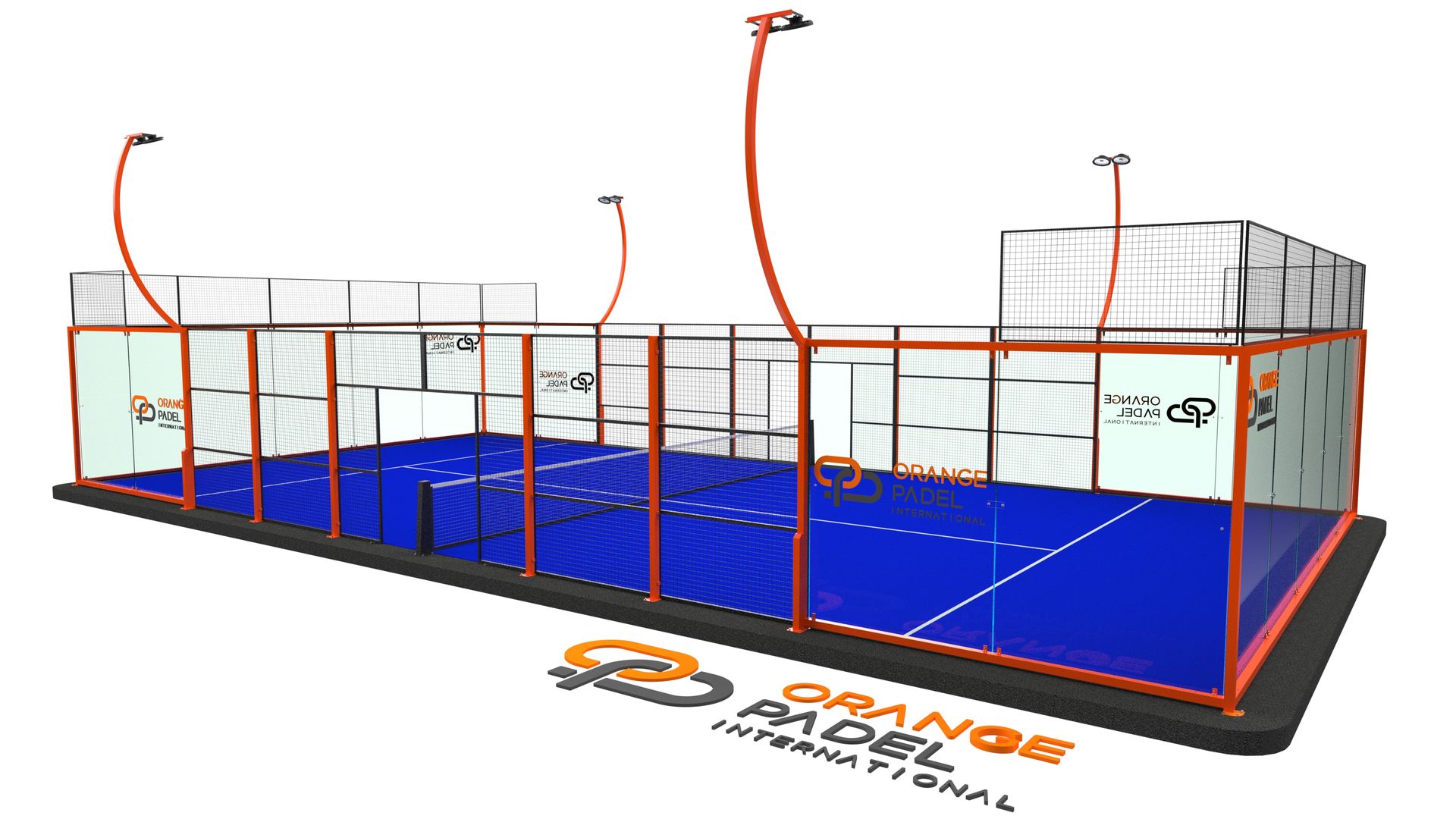

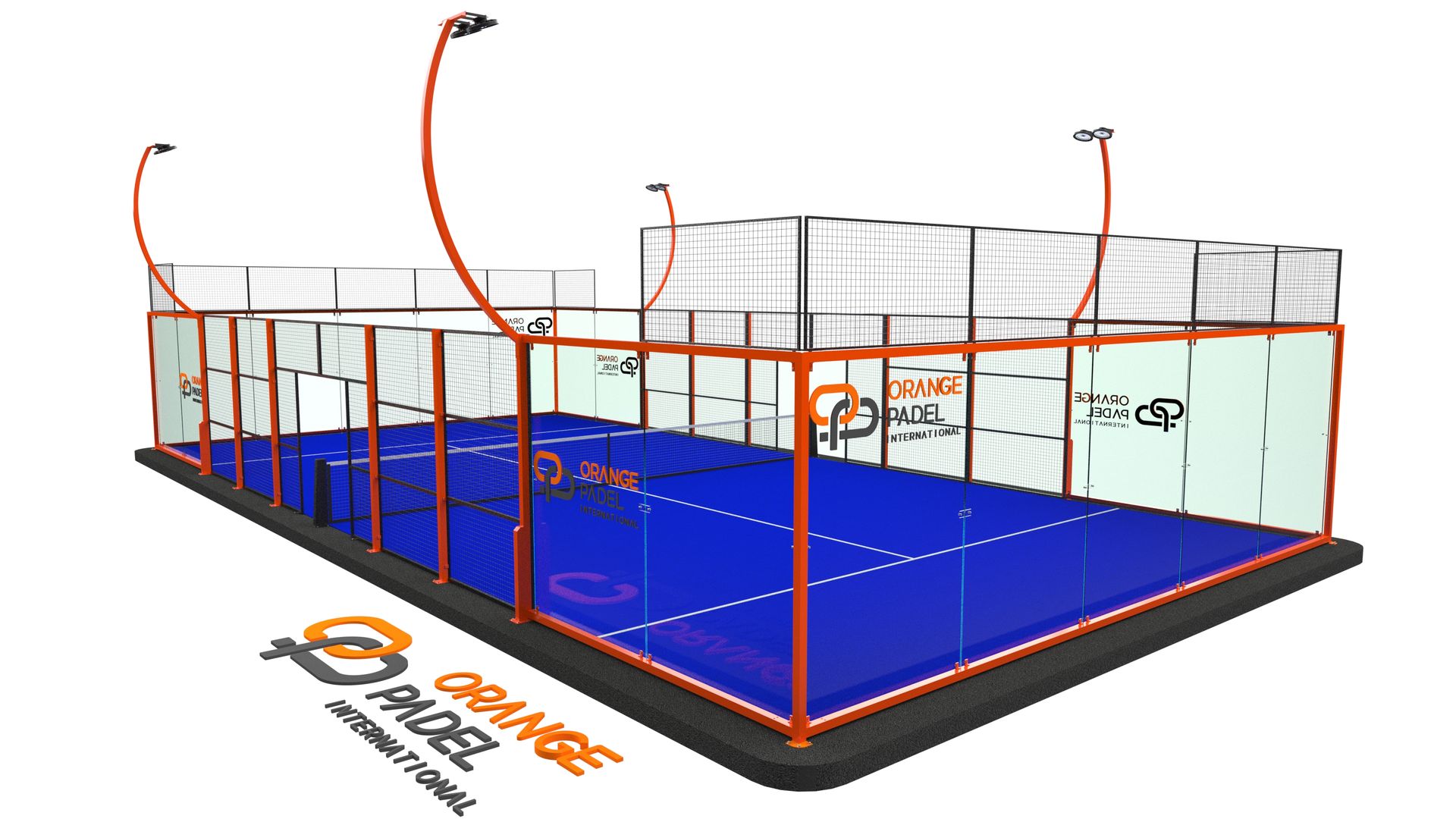

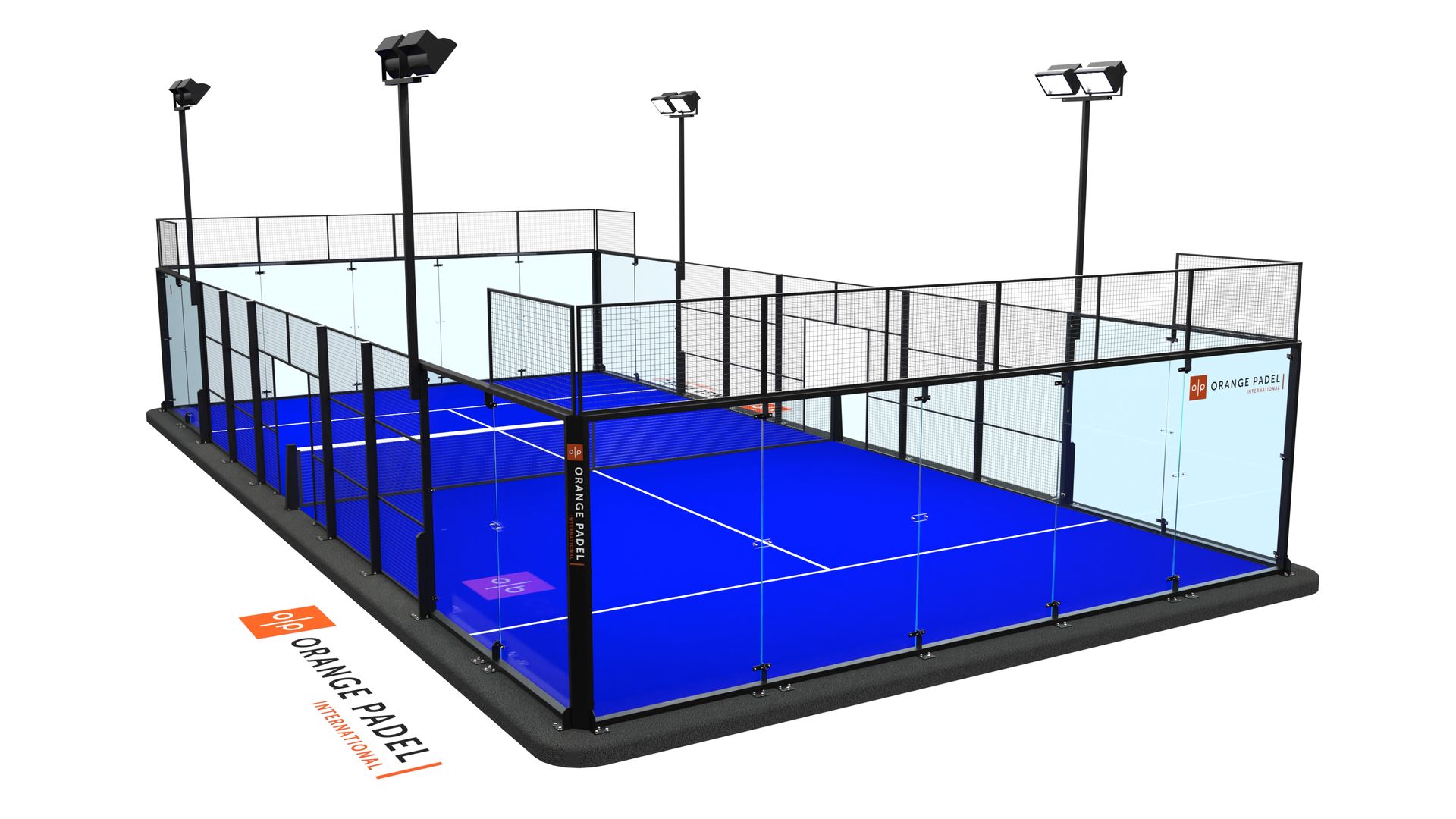

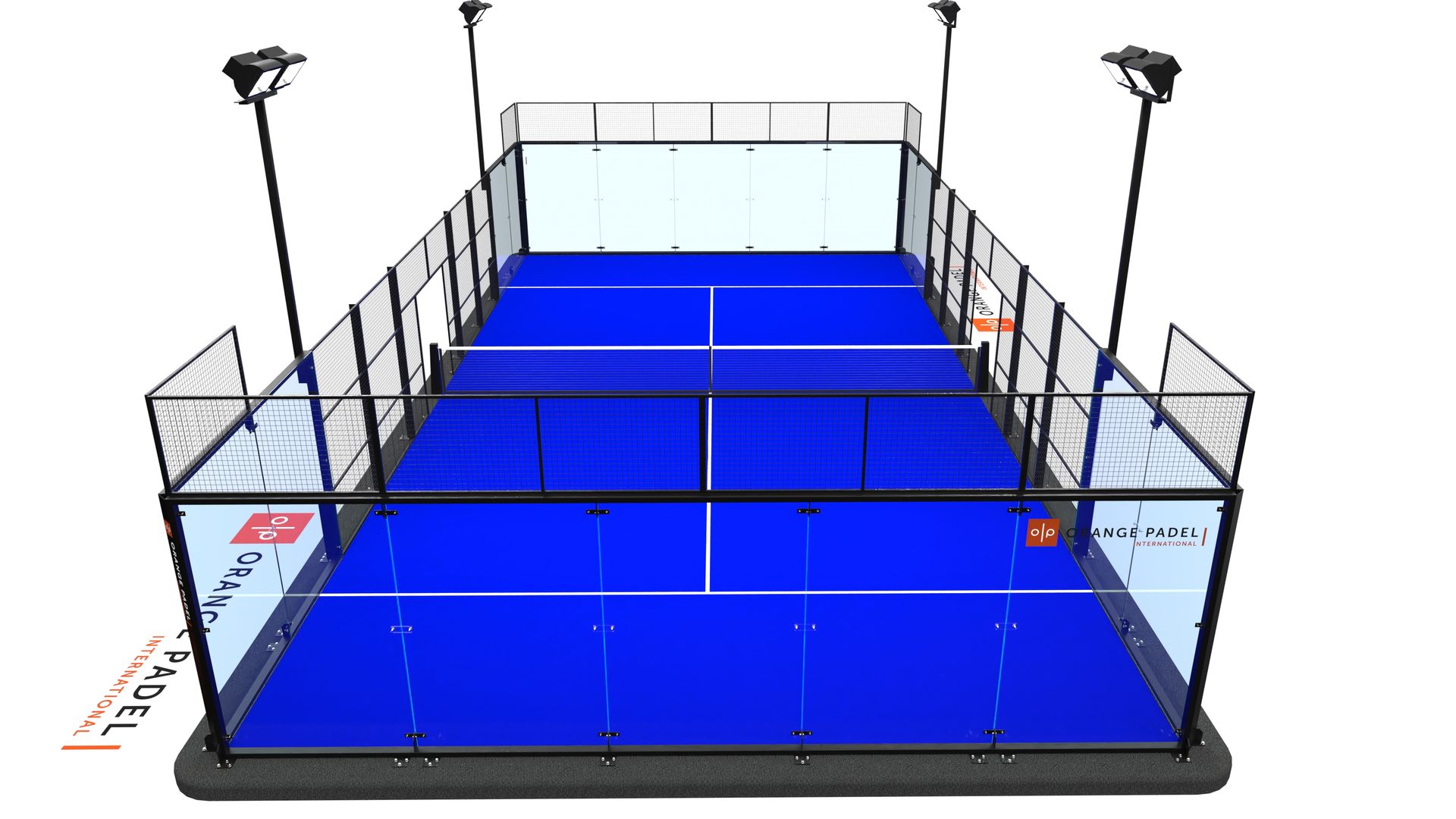

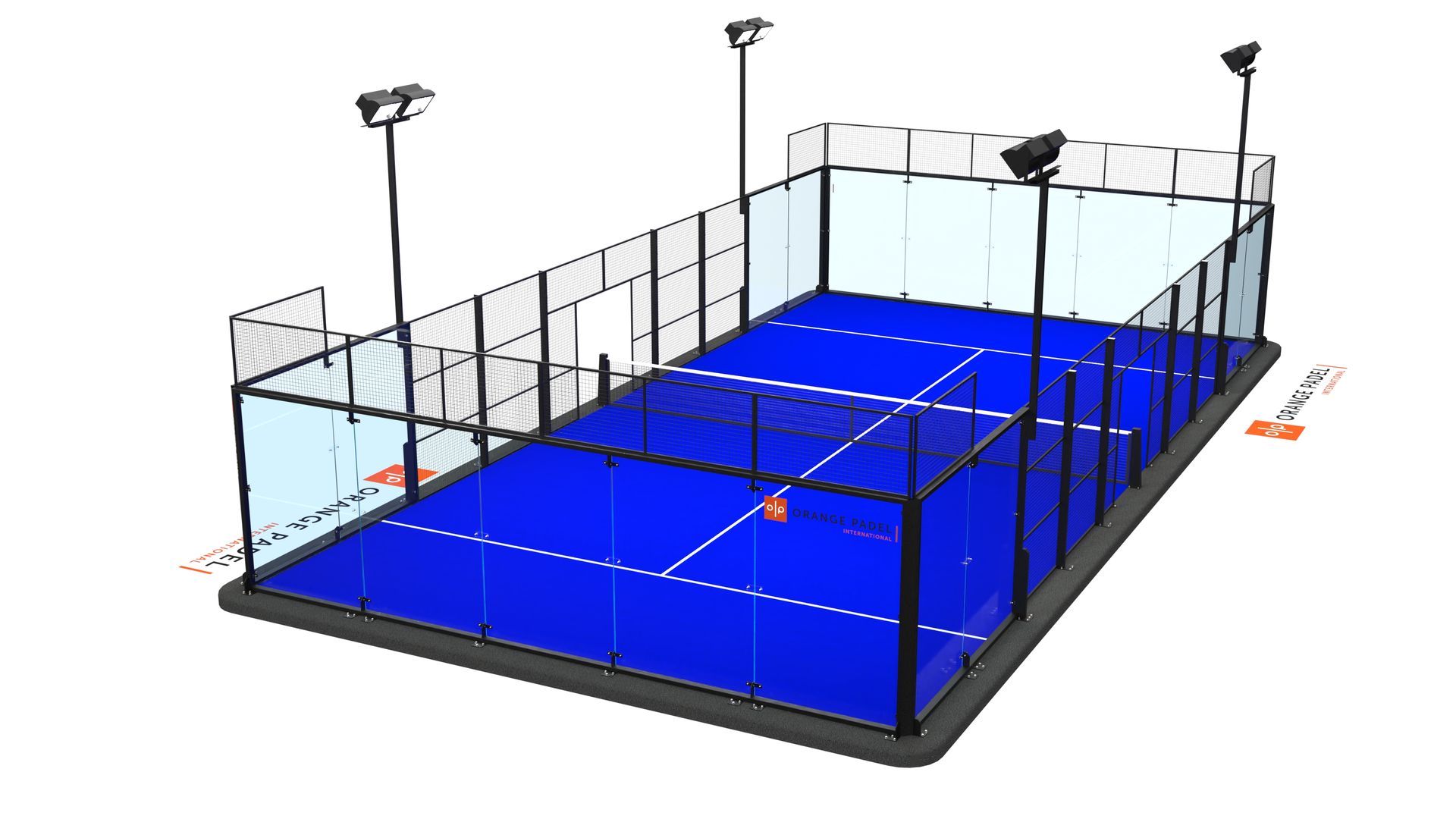

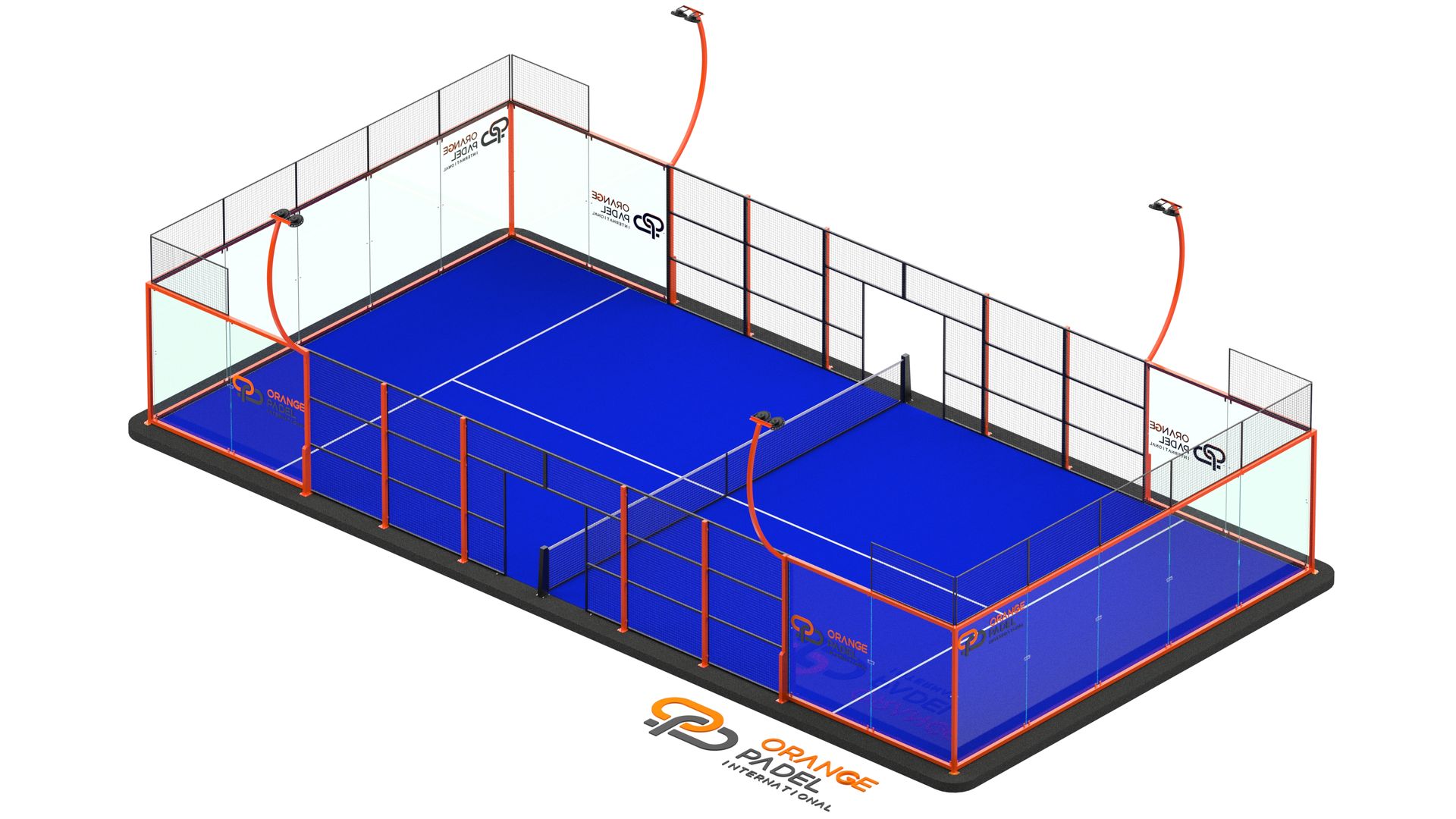

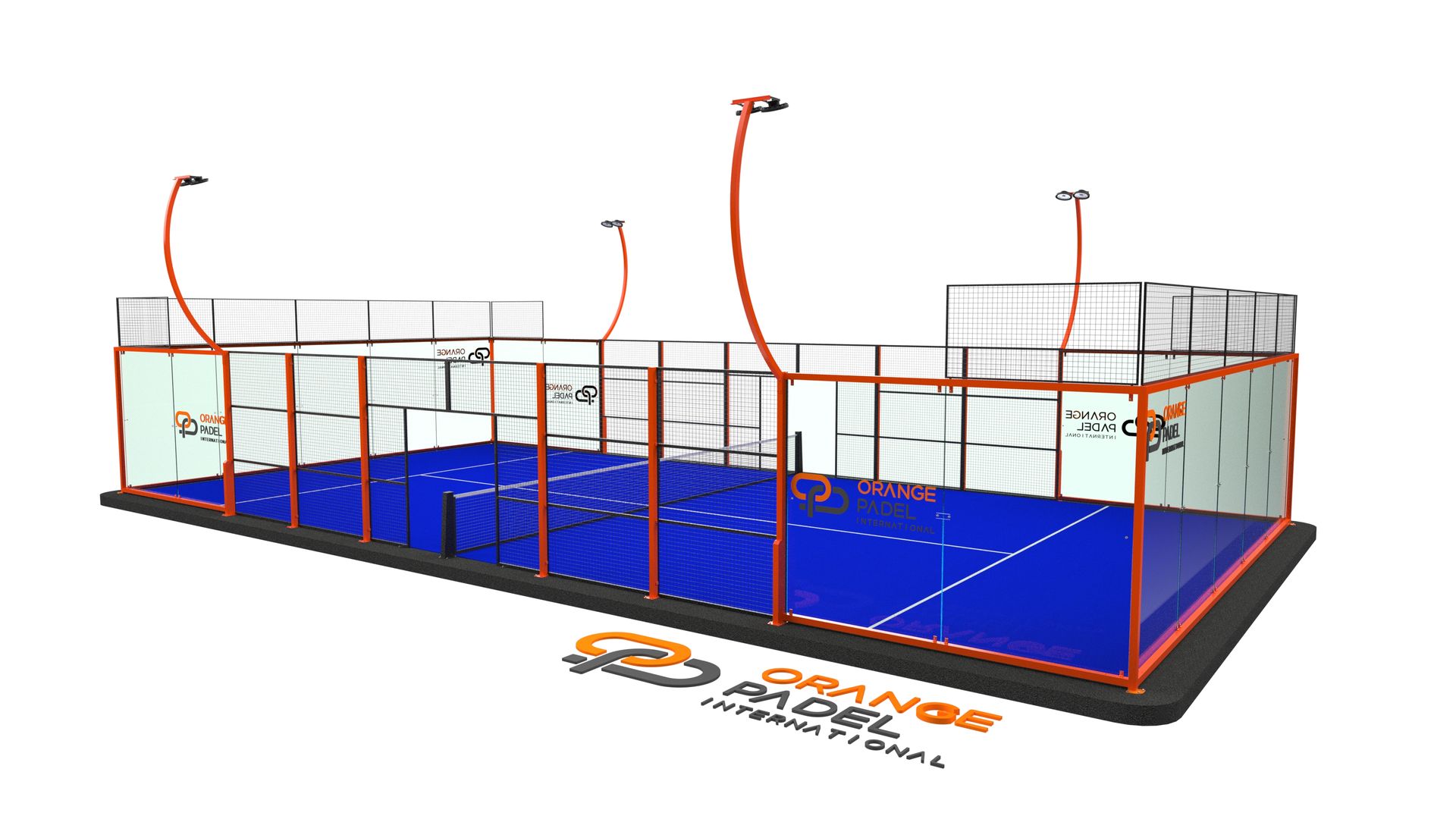

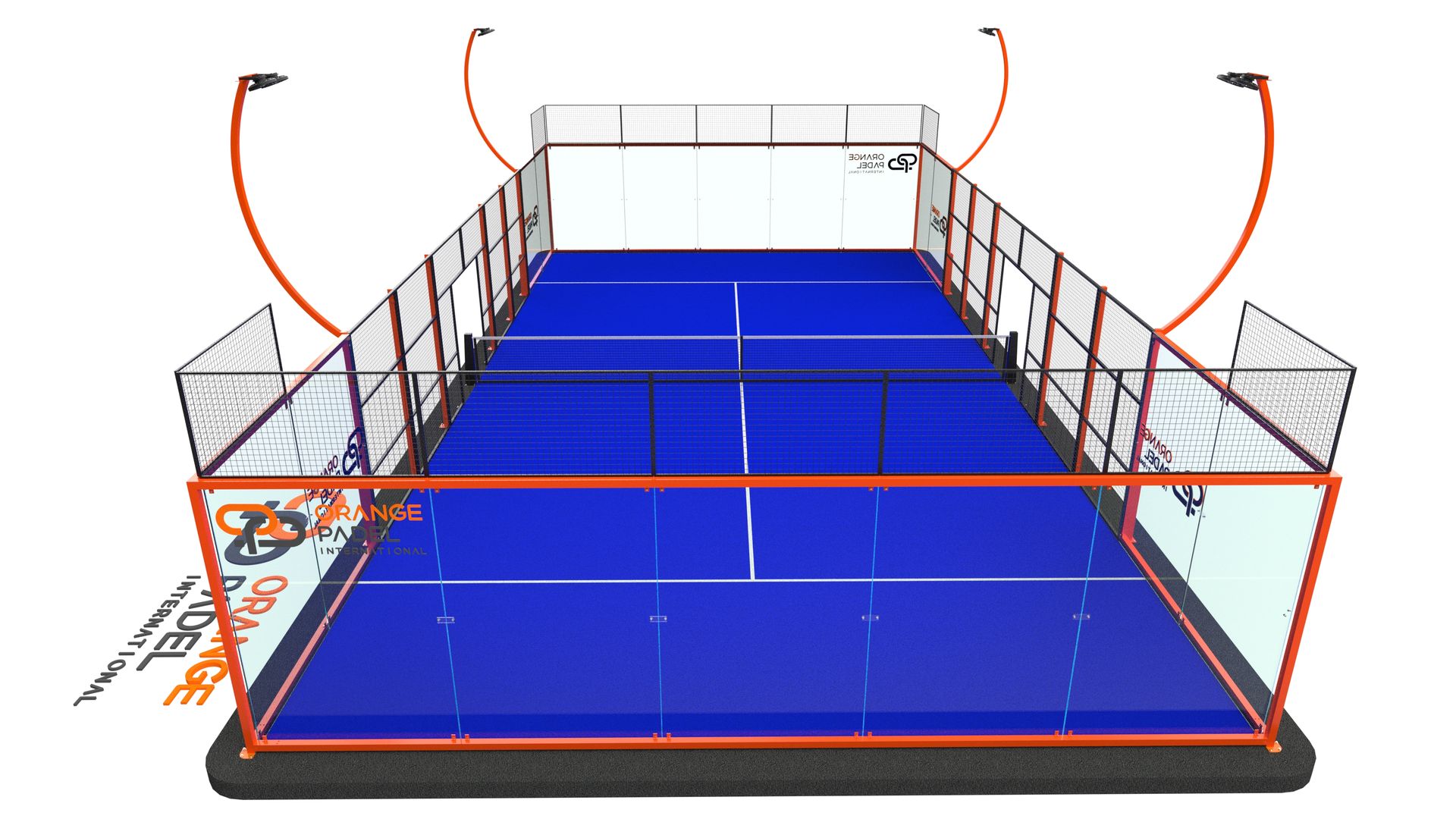

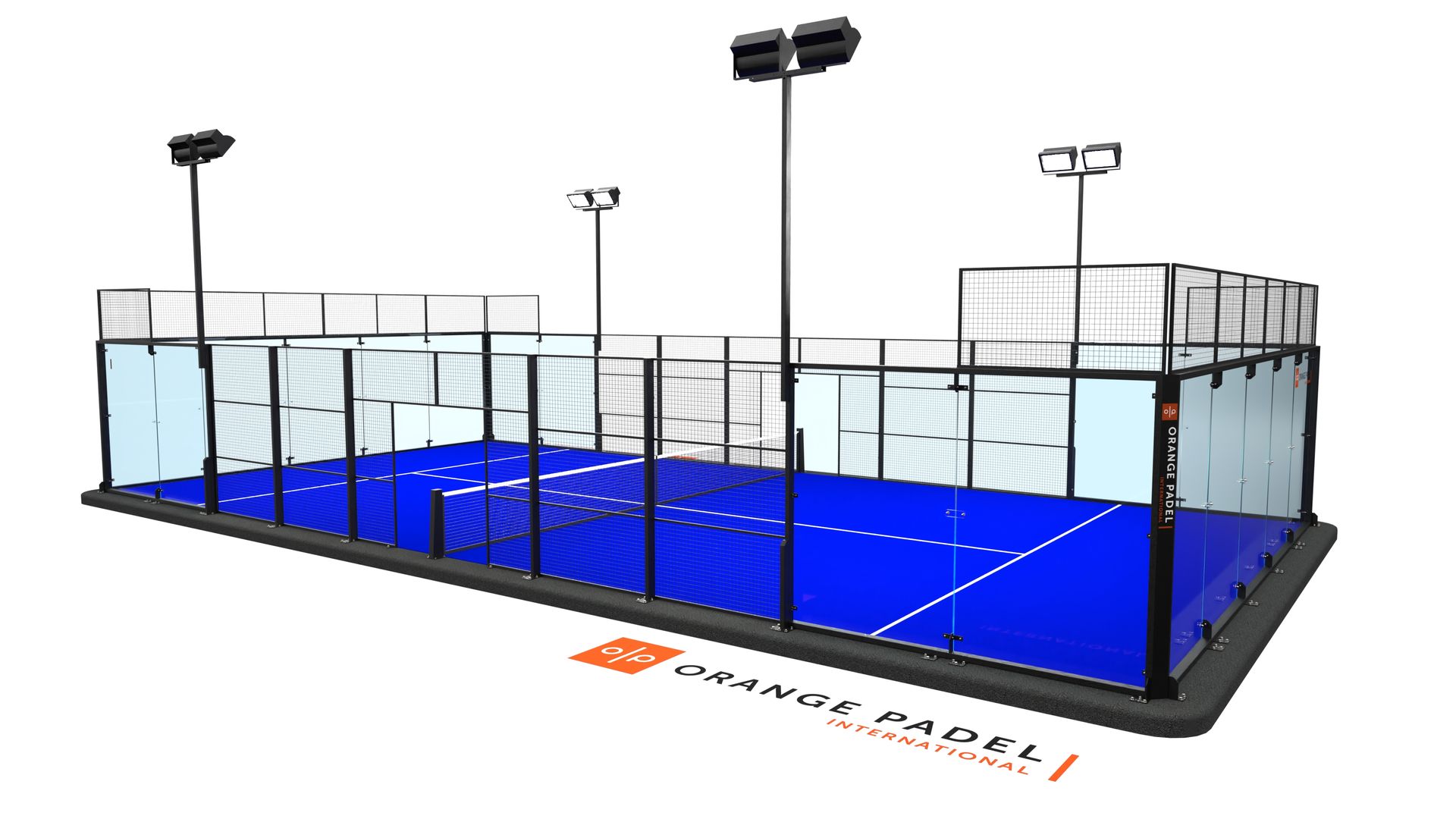

This FIP compliant court is based on the same engineering properties as the Orange Padel Ultimate but in the panoramic version. The full glass panorama back and partly (4meters) glass side walls give a spectacular view of the spectators and a very spacious playing atmosphere for the athletes. The Orange Padel Pano Ultimate is a real eye catcher for your club.

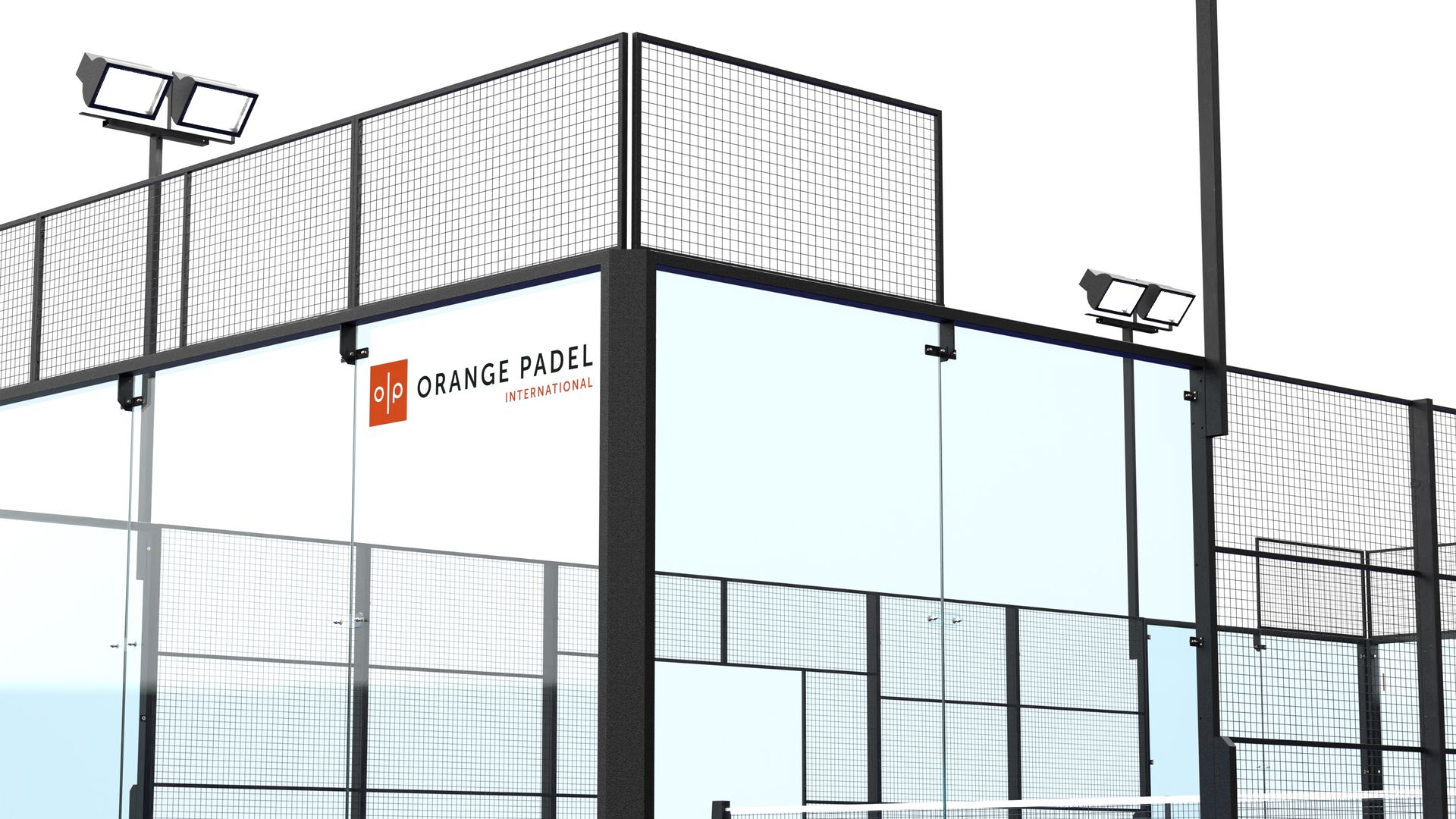

This Pano Ultimate has its full panoramic court backsides made on 12mm tempered glass. The structural upper side beam is constructed out of galvanized steel in 100x60mm, ultimate strong and rigid. The full steel structure is manufactured with Orange Padel approved galvanized steel materials therefore the perfect choice for any climate all over the world.

Panorama system

Rigid engineered structural beam for panorama made of galvanized steel with hot dip galvanised anchor plates. Galvanised metal hybrid frames and pillars made of structural tube 100 x 60 x mm. 12 galvanized modules of Electro-welded mesh.

Electro-welded mesh

Electro-welded mesh of 50 x 50 x4 mm reinforced with galvanized structural tube


Homologated 12mm tempered safety glass .Standard 18 panels of 1995 x 2995mm. All glass panels are produced in compliance with CE, ISO and UNE EN 12150-1 standard

Artificial grass

Orange Padel grass is produced in compliance with ISO 9001 & 14001, 3 options: fibrillated, monofilament and curled

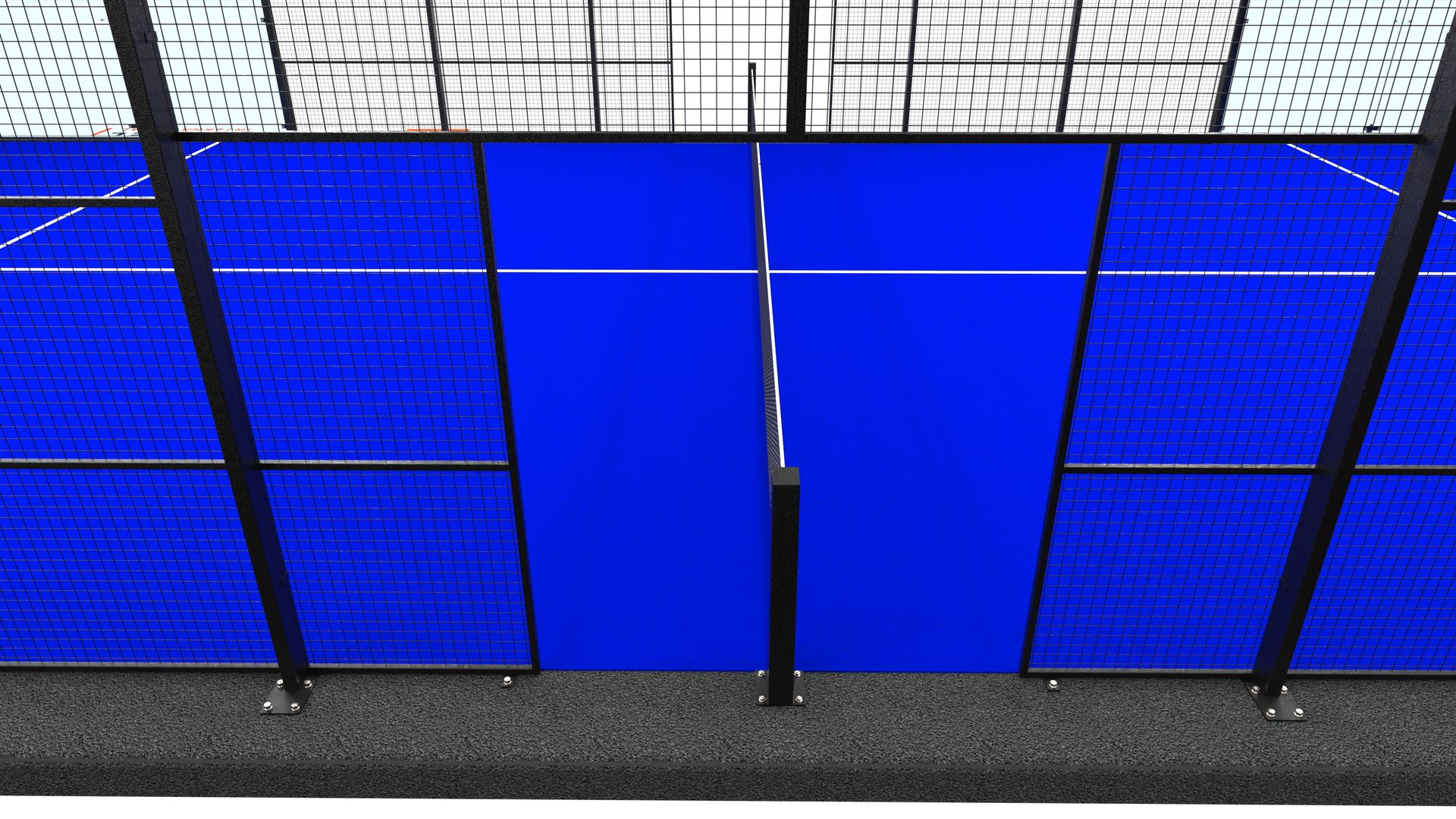

Nett Poles

Including an internal tension system.

Straight lighting system

8 LED lights 200w especially designed for padel courts, including 3m electric cable and protection fuses. 4 columns of galvanized steel for lighting installation.
