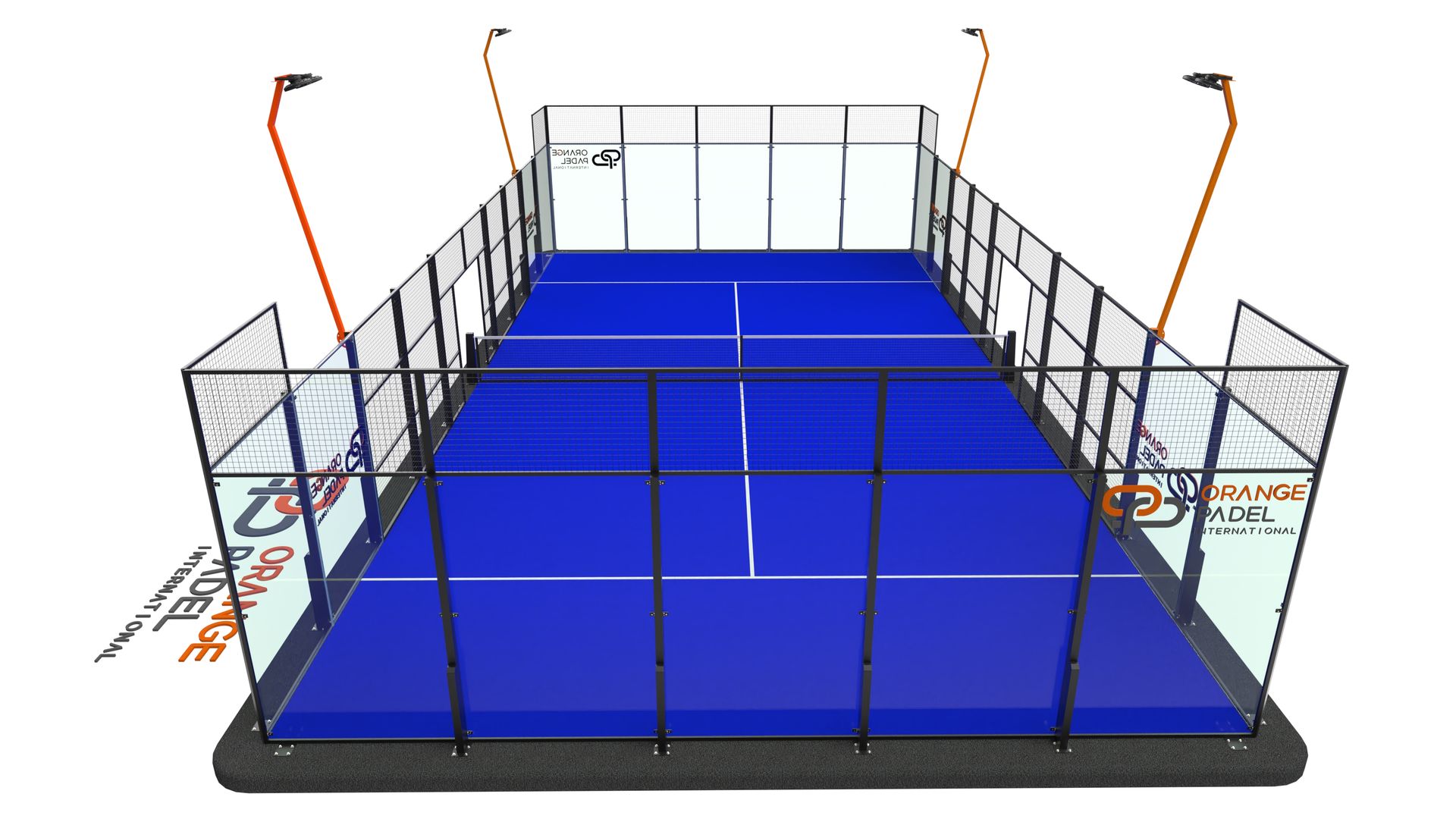

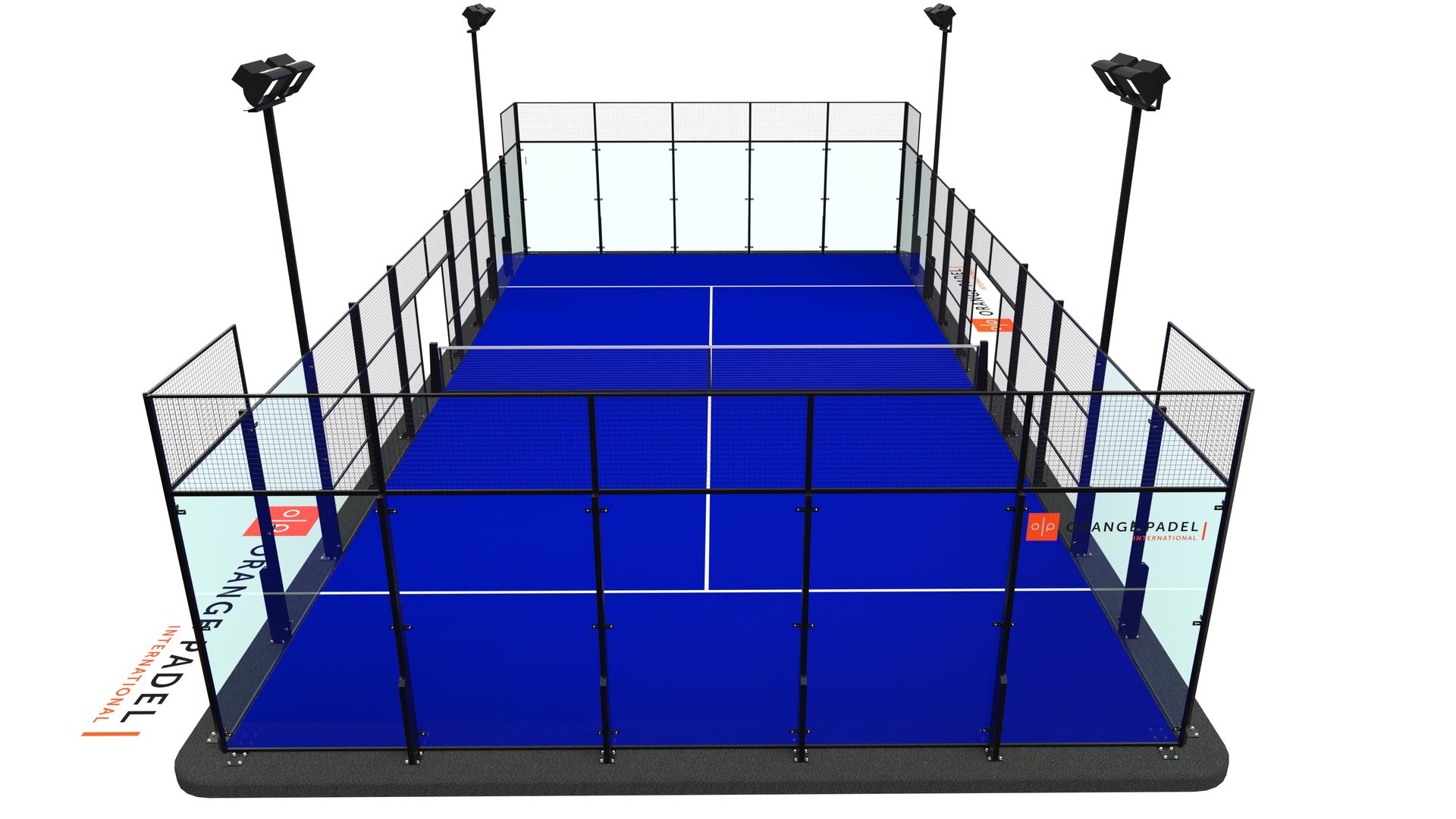

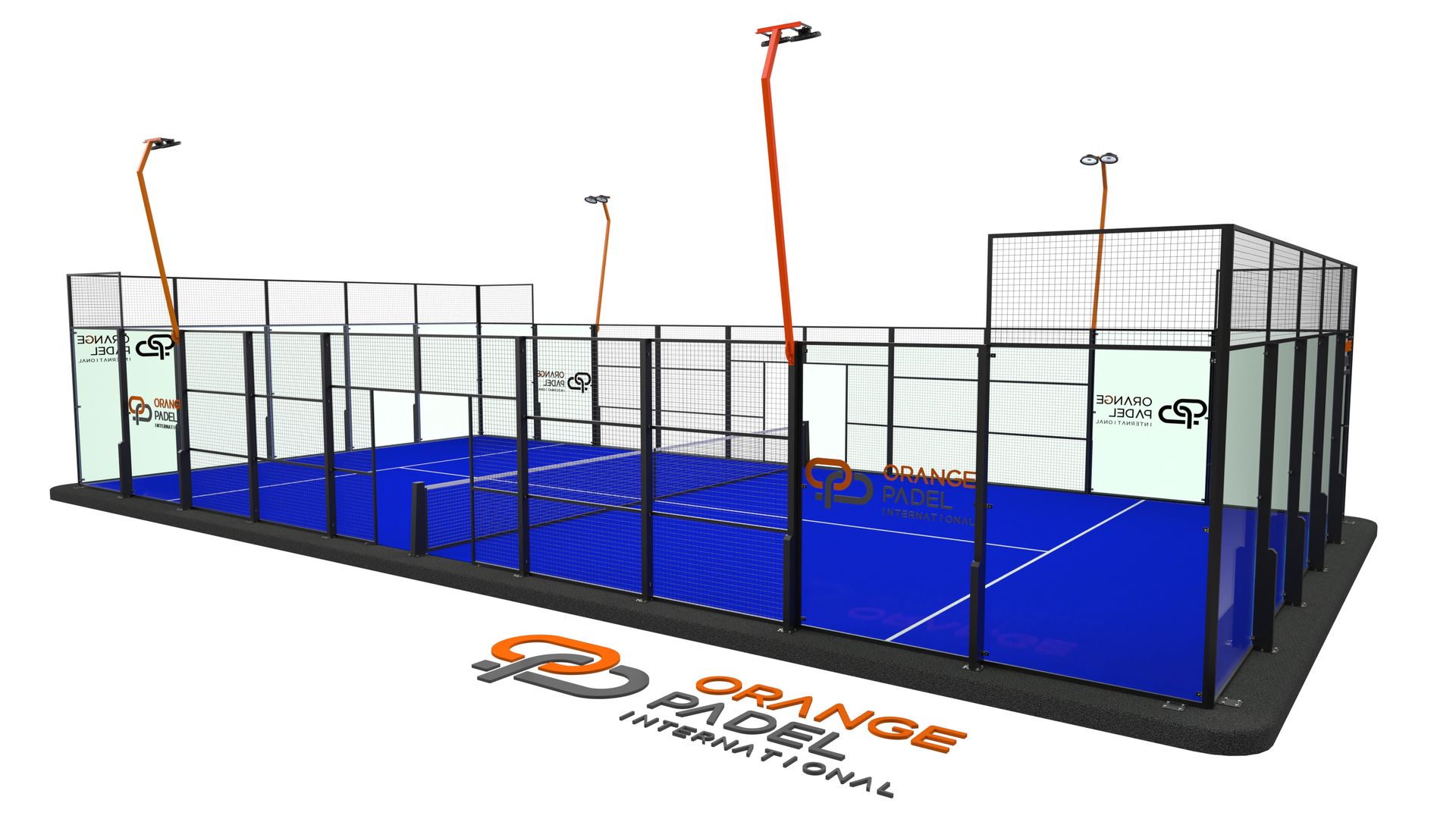

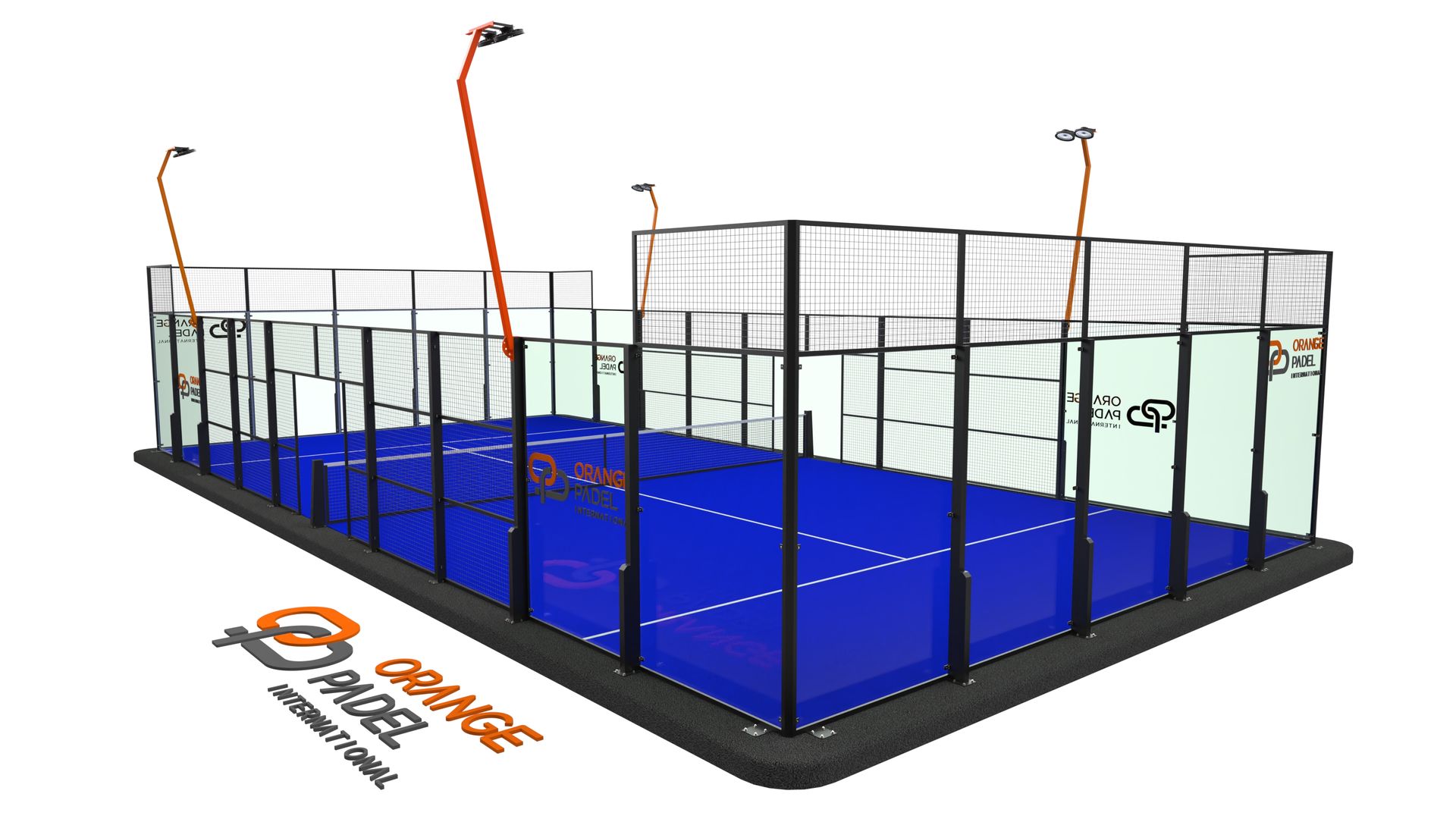

Orange Padel Ultimate

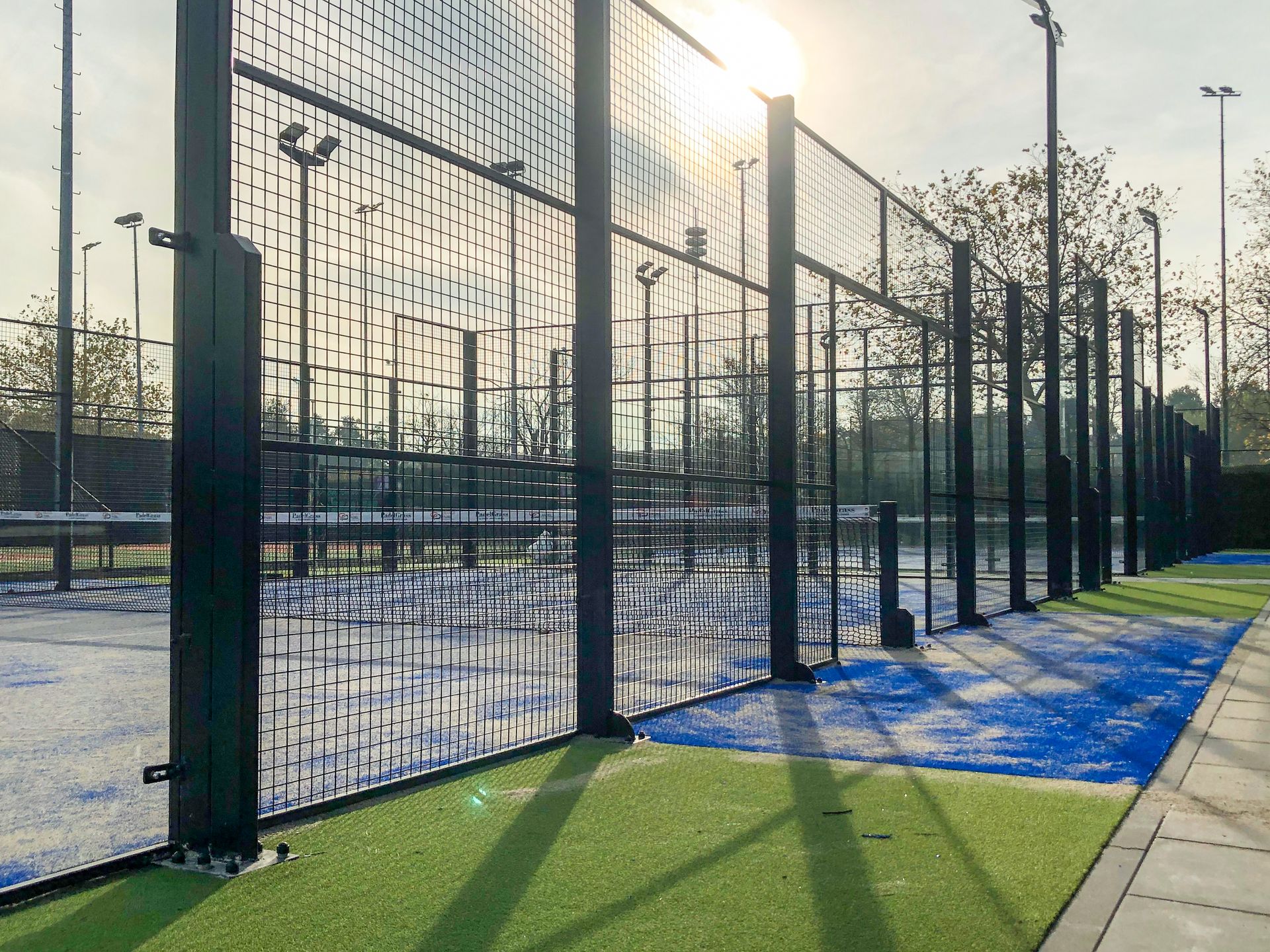

FIP compliant, very durable and rigid padel court. Orange Padel Ultimate is ideal for the international market due to its strength, easy assembly, low maintenance and very logistically efficient for shipping by sea and road. The full structure is manufactured of premium quality galvanized steel.

Technical Sheet

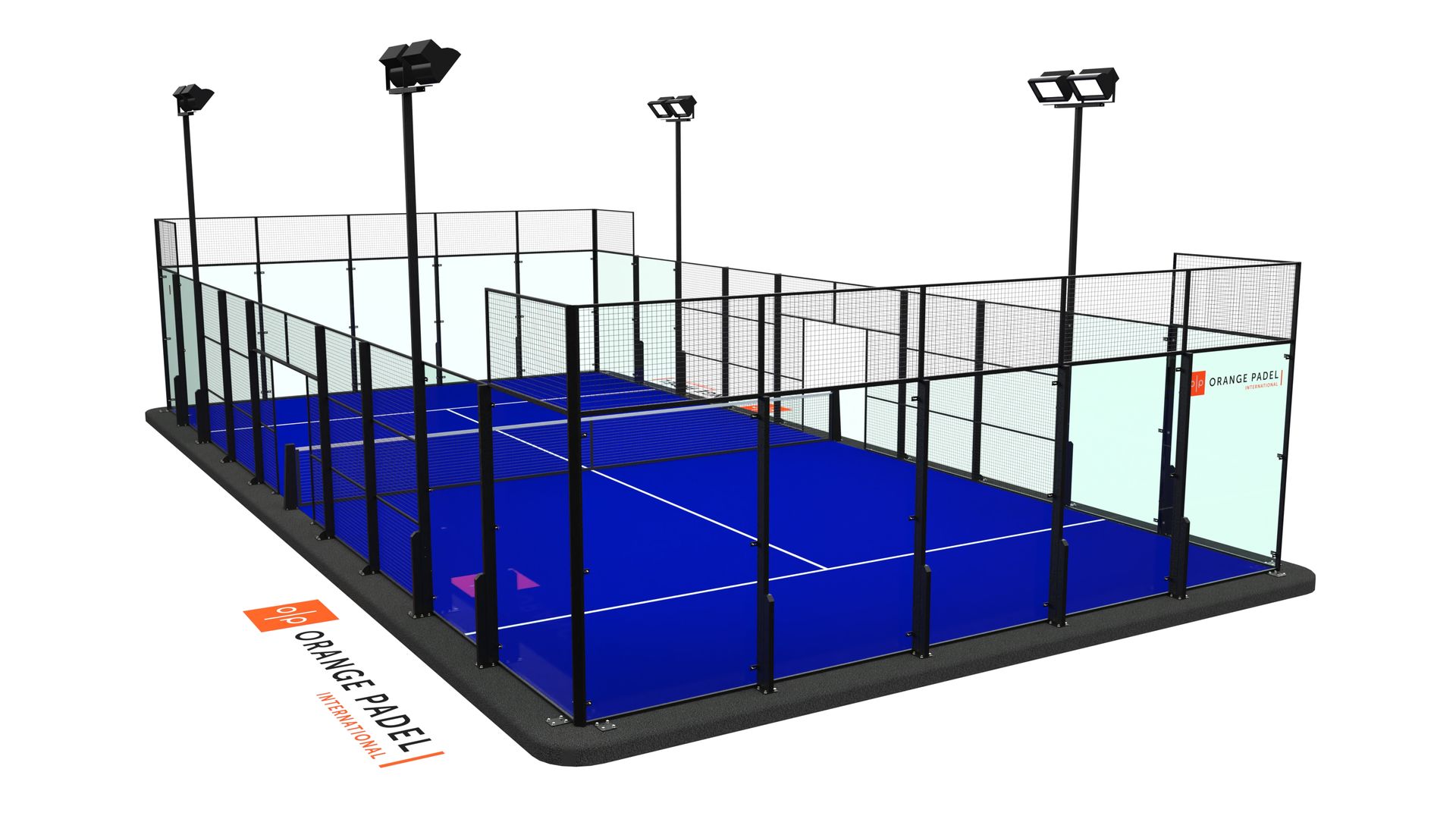

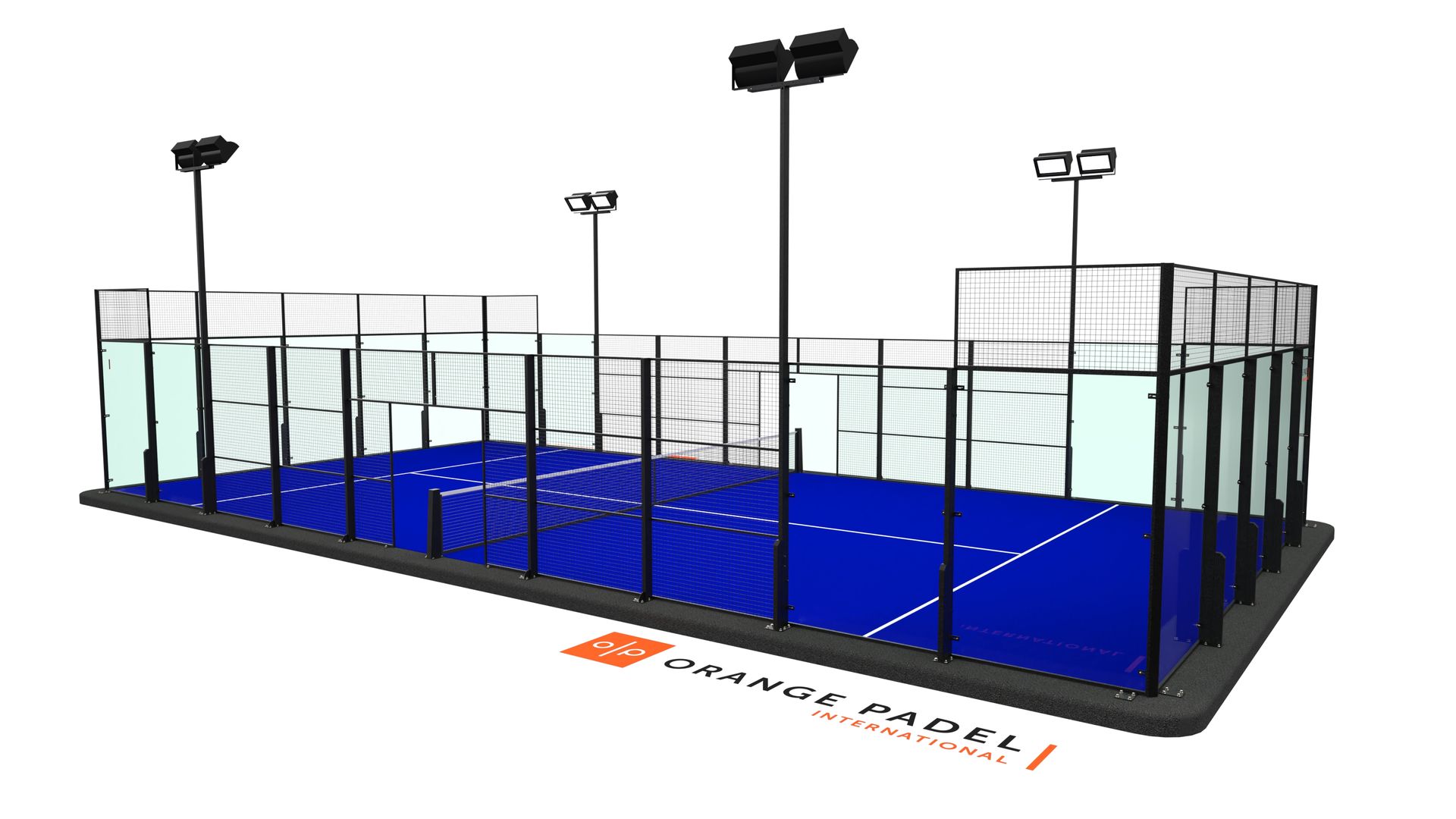

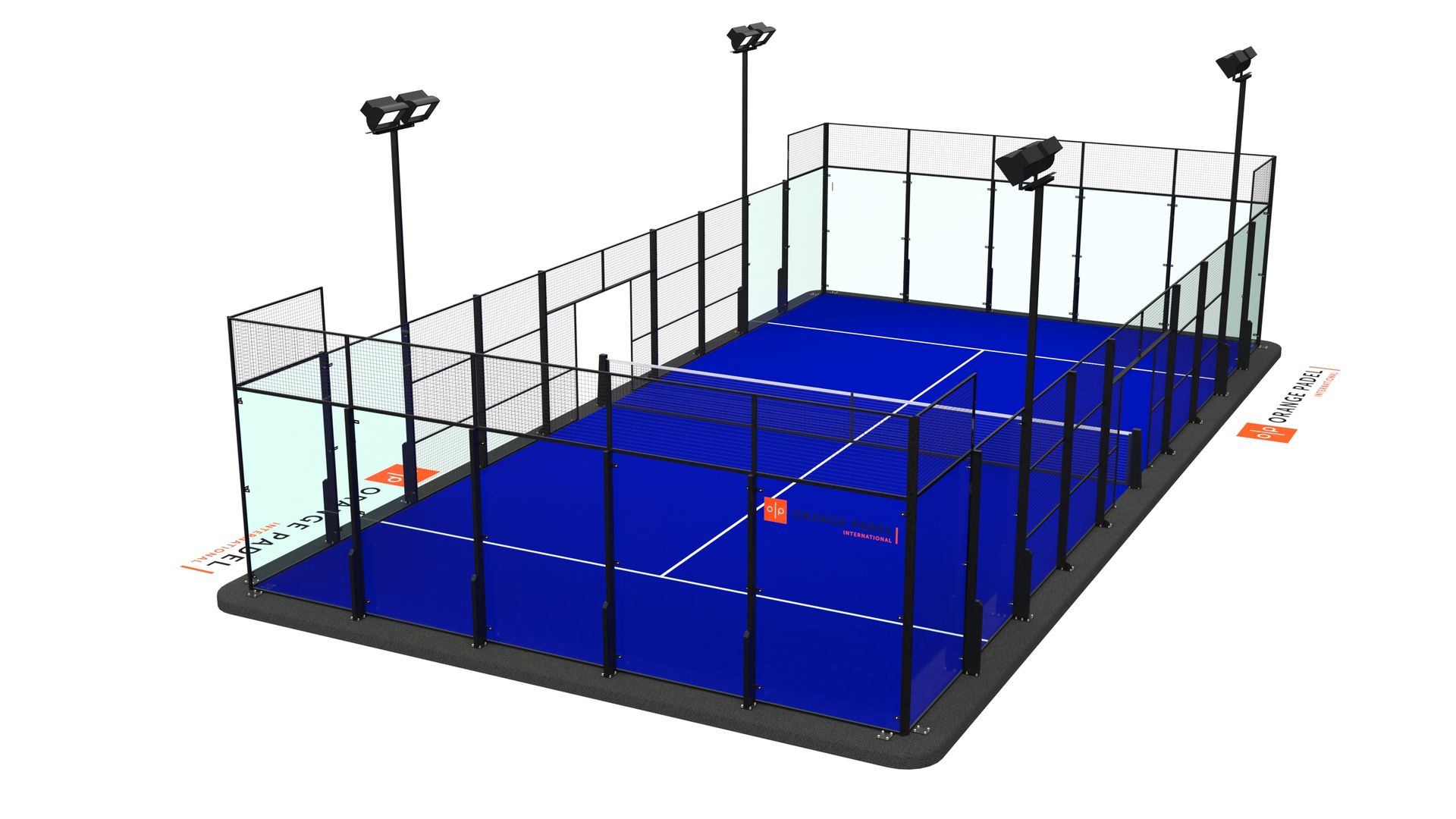

Orange Padel Ultimate

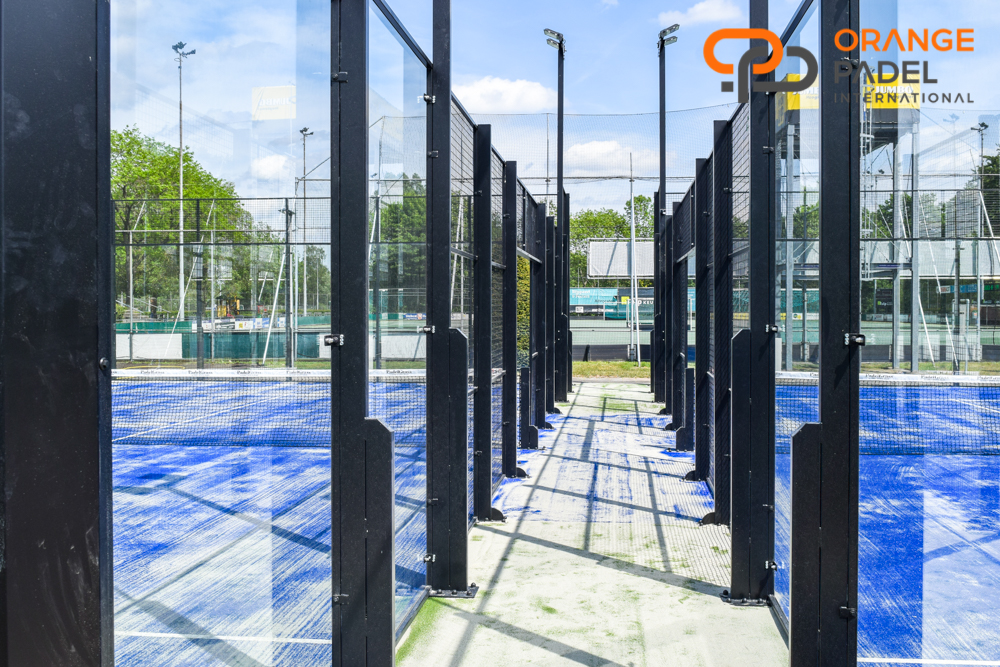

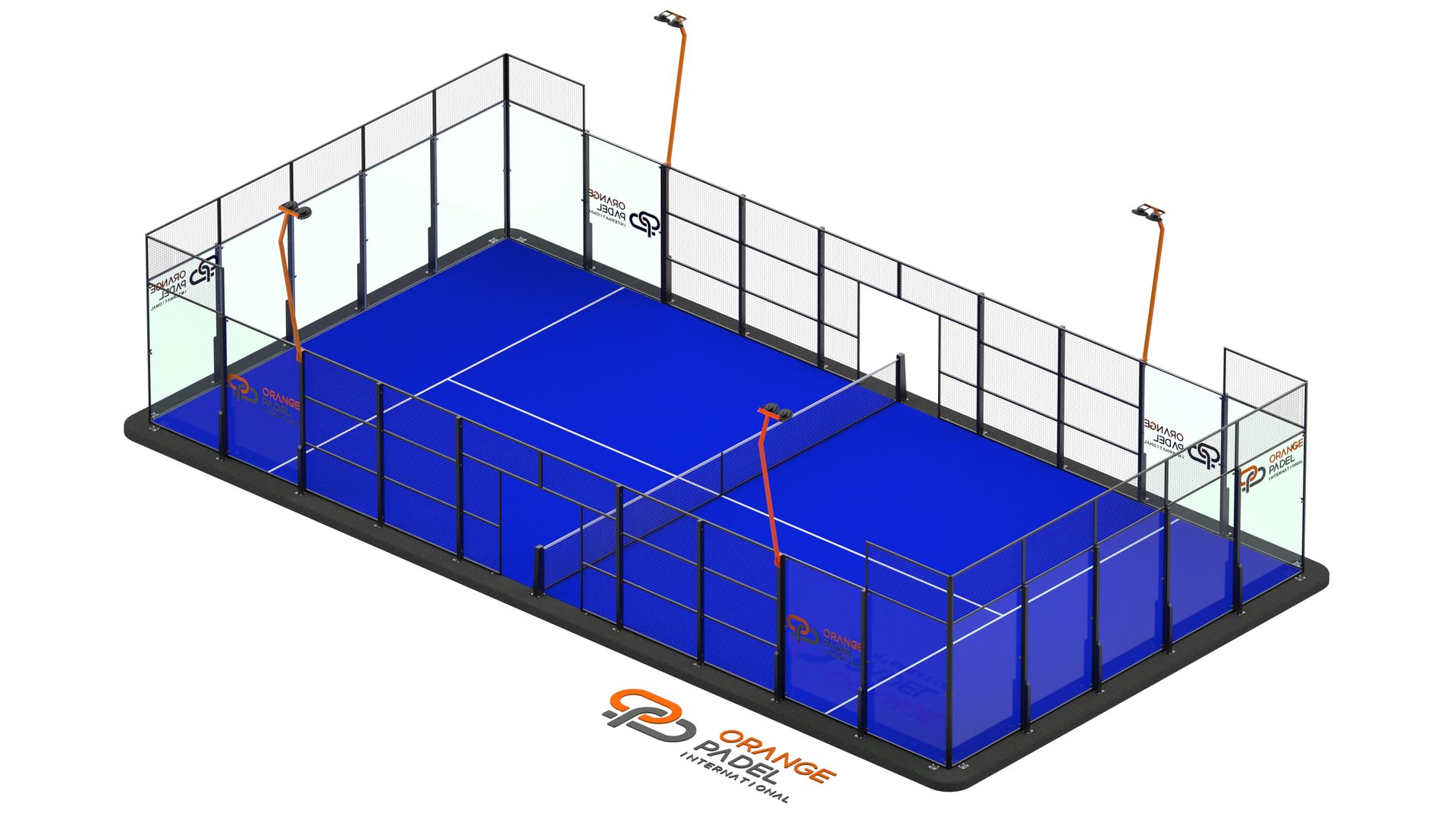

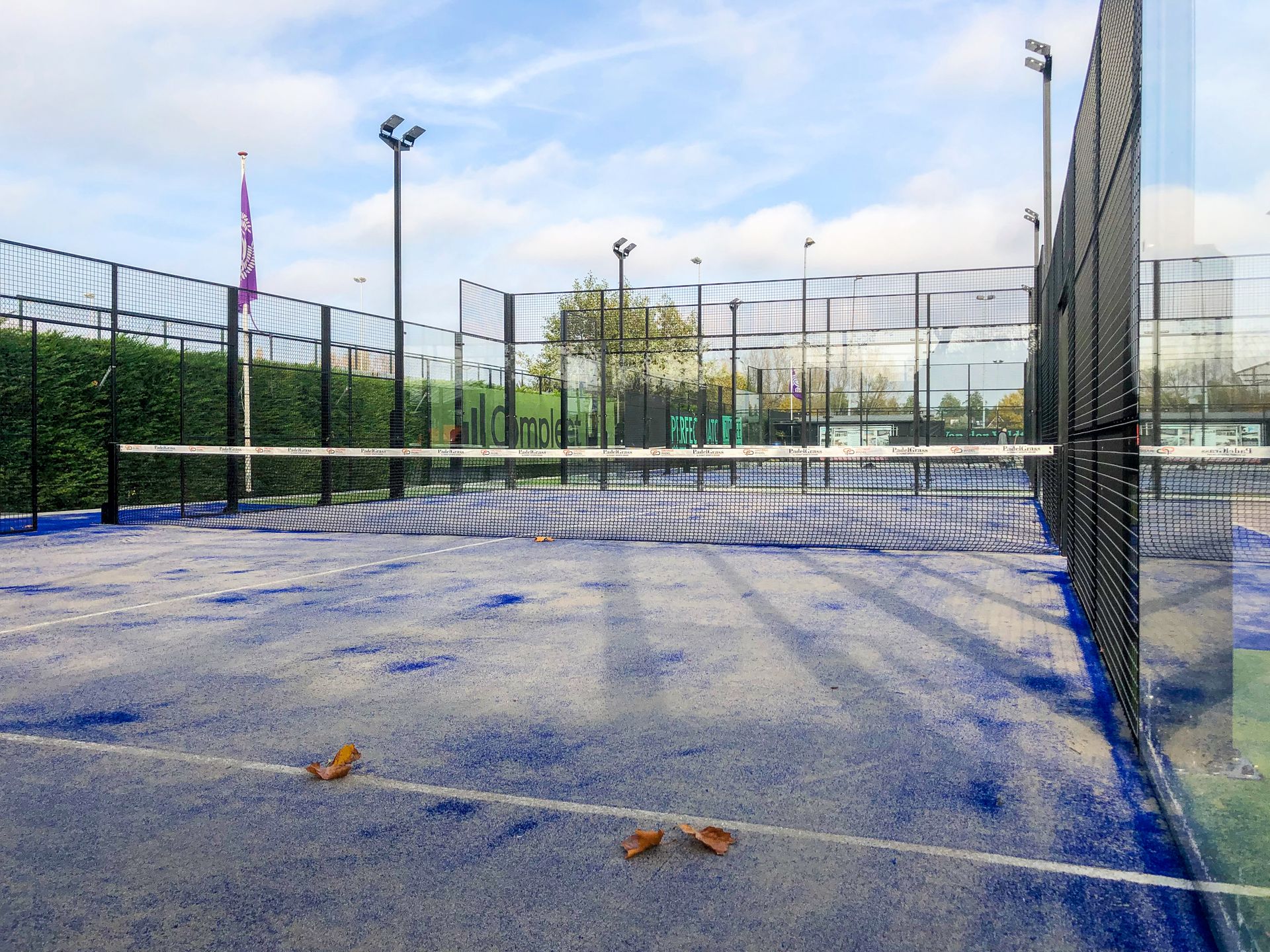

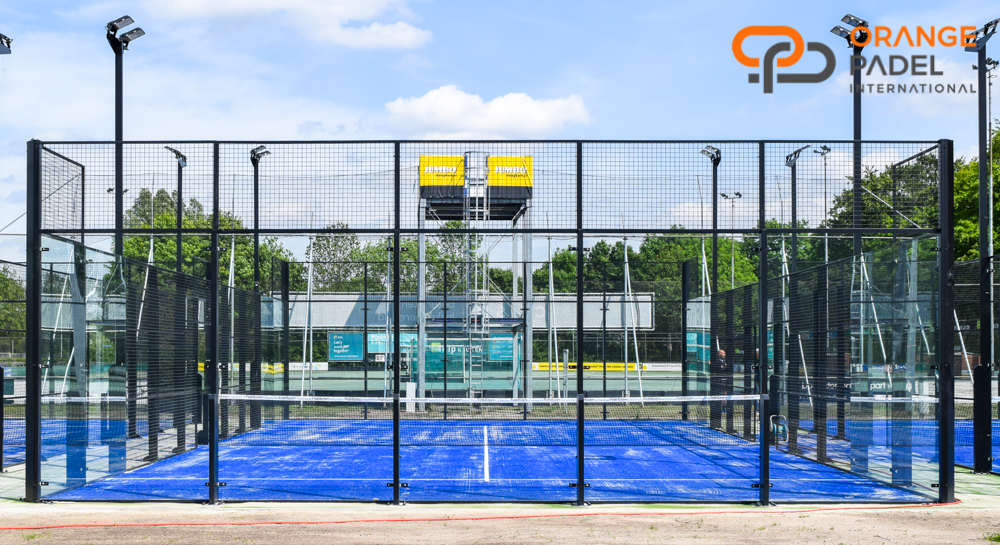

Last generation of padel FIP compliant courts which offers a unique design of galvanized frames module technology combined with full galvanized pillars based on very rigid galvanized rectangular anchor plates. The Orange Padel Ultimate is the solution where strength, resistance against severe weather conditions and durability of a court meet the ultimate players satisfaction.

This court can be installed anywhere in the world in all kind of climatological conditions. Due to the use of extra reinforcements the Orange Padel Ultimate provides the strongest and most rigid structure in the market with the highest resistance to wind loads.

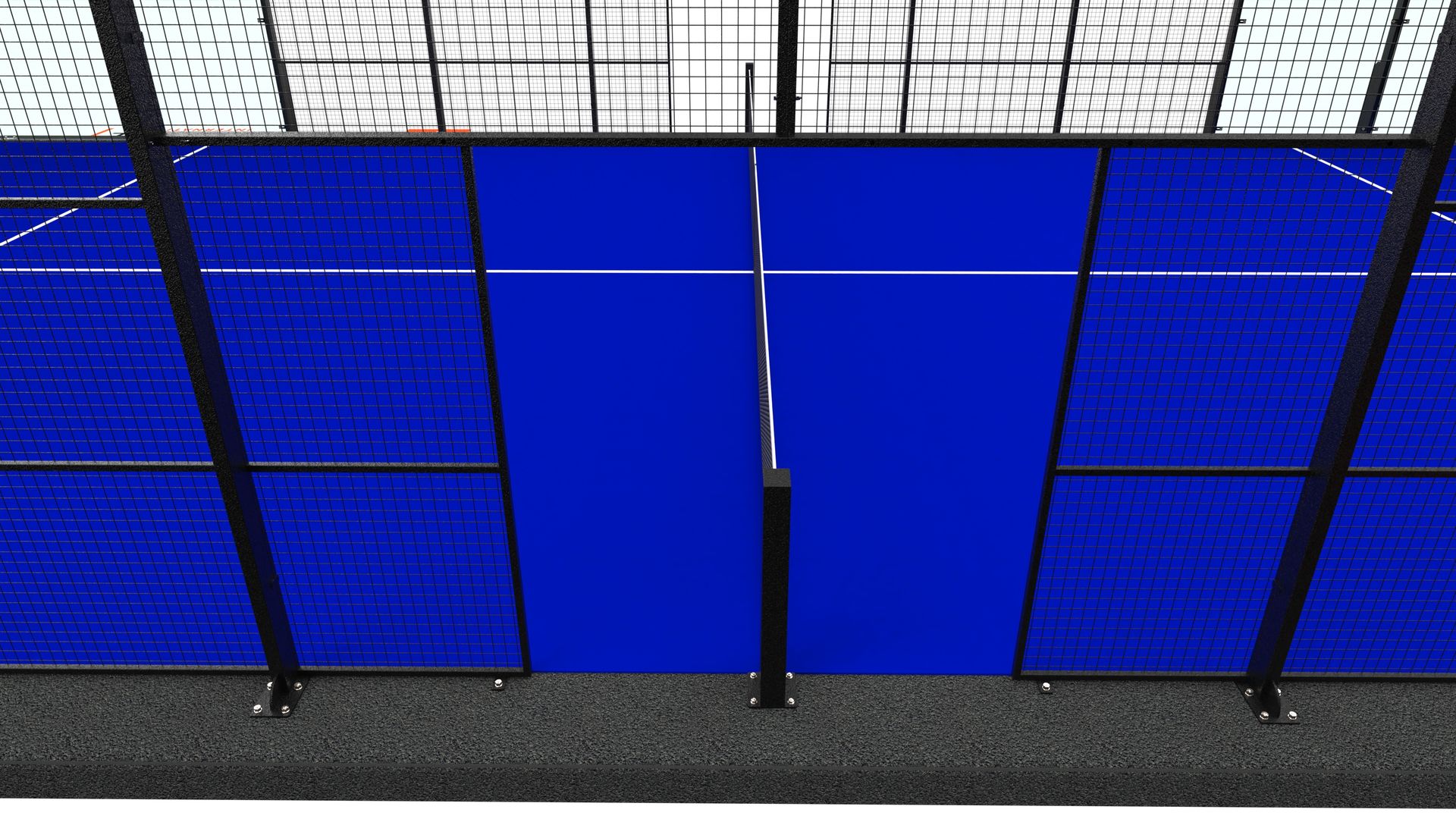

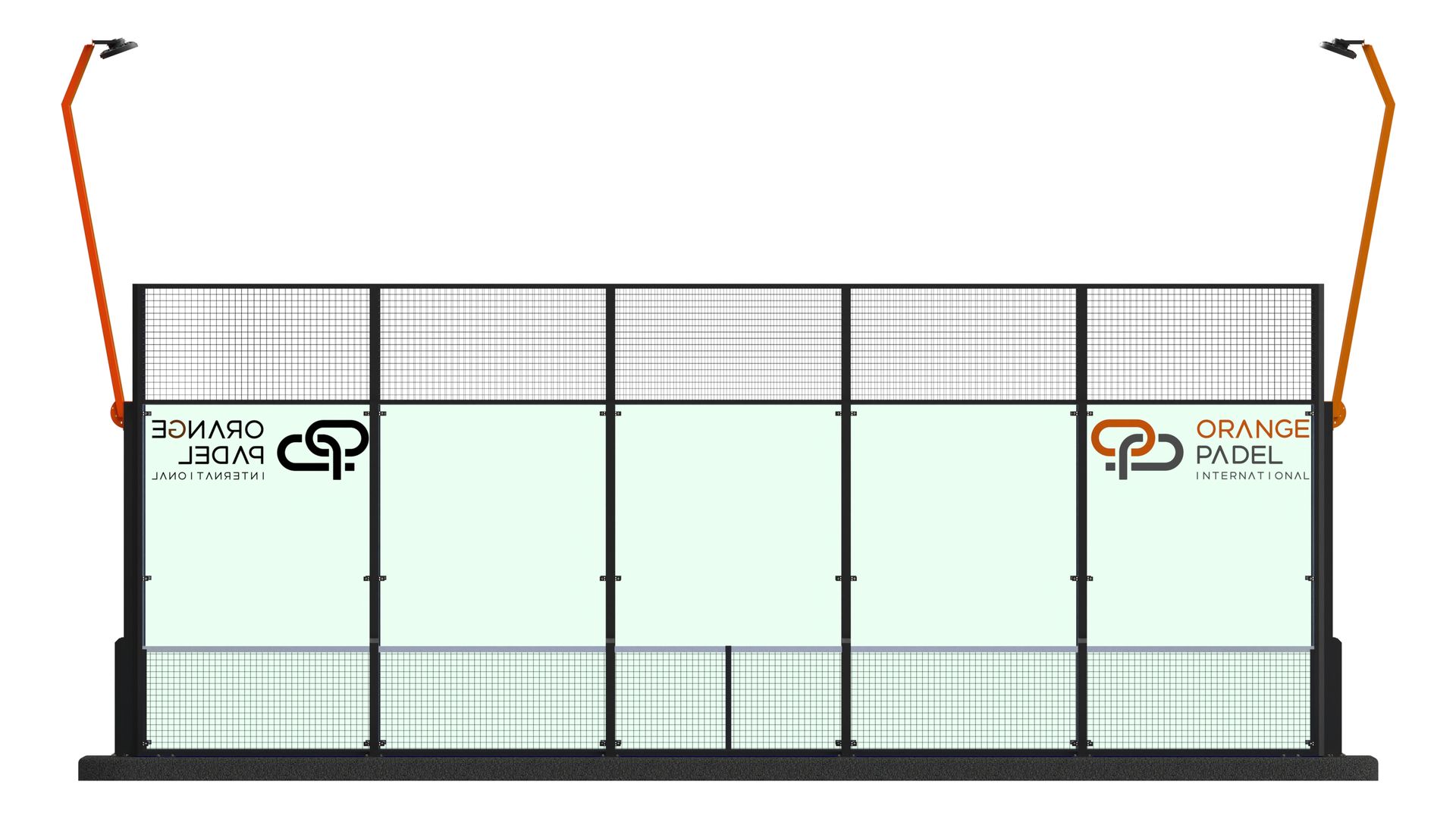

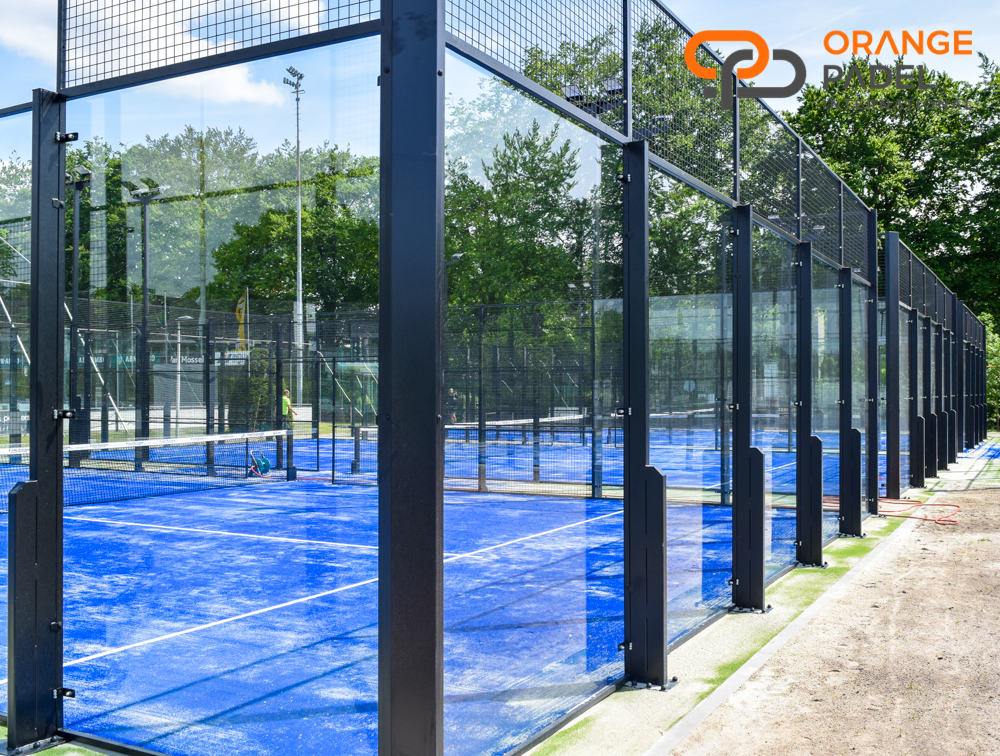

Hybrid pillar & frame system

Galvanised metal hybrid frame/pillar system made of structural tube 100 x 60 mm. 12 galvanized modules of Electro-welded mesh of 50 x 50 x4 mm reinforced with galvanized structural tube.

Electro-welded mesh

Electro-welded mesh of 50 x 50 x4 mm reinforced with galvanized structural tube


Homologated 10mm or 12mm tempered safety glass .Standard 18 panels of 1995 x 2995mm, optional 14 panels of 1995 x 2995mm and 4 panels of 1995 x 1995mm are possible.  All glass panels are produced in compliance with CE, ISO and UNE EN 12150-1 standard

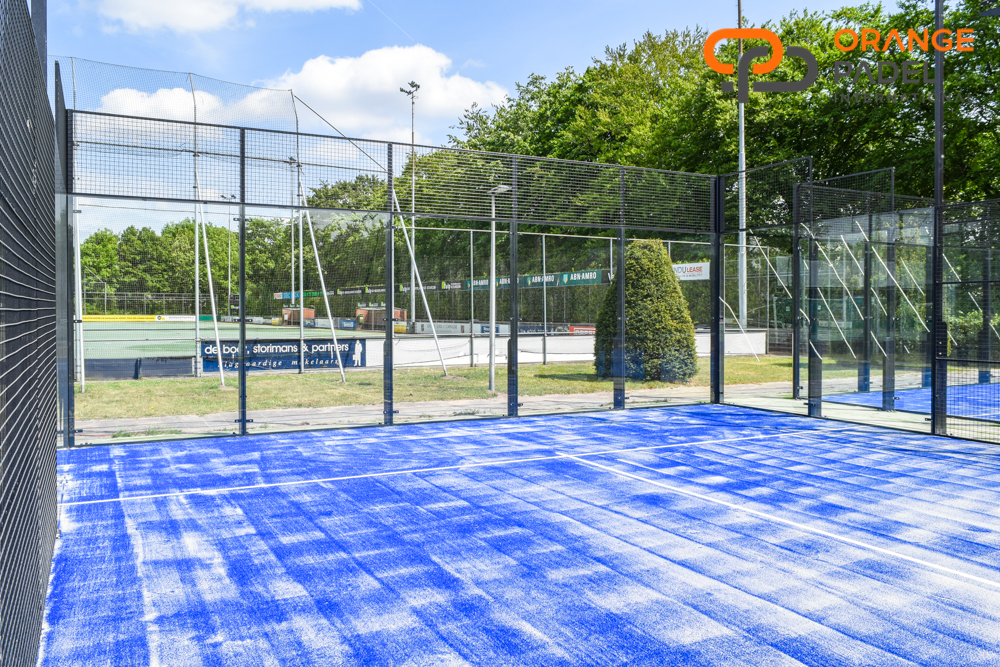

Artificial grass

Orange Padel grass is produced in compliance with ISO 9001 & 14001, 3 options: fibrillated, monofilament and curled

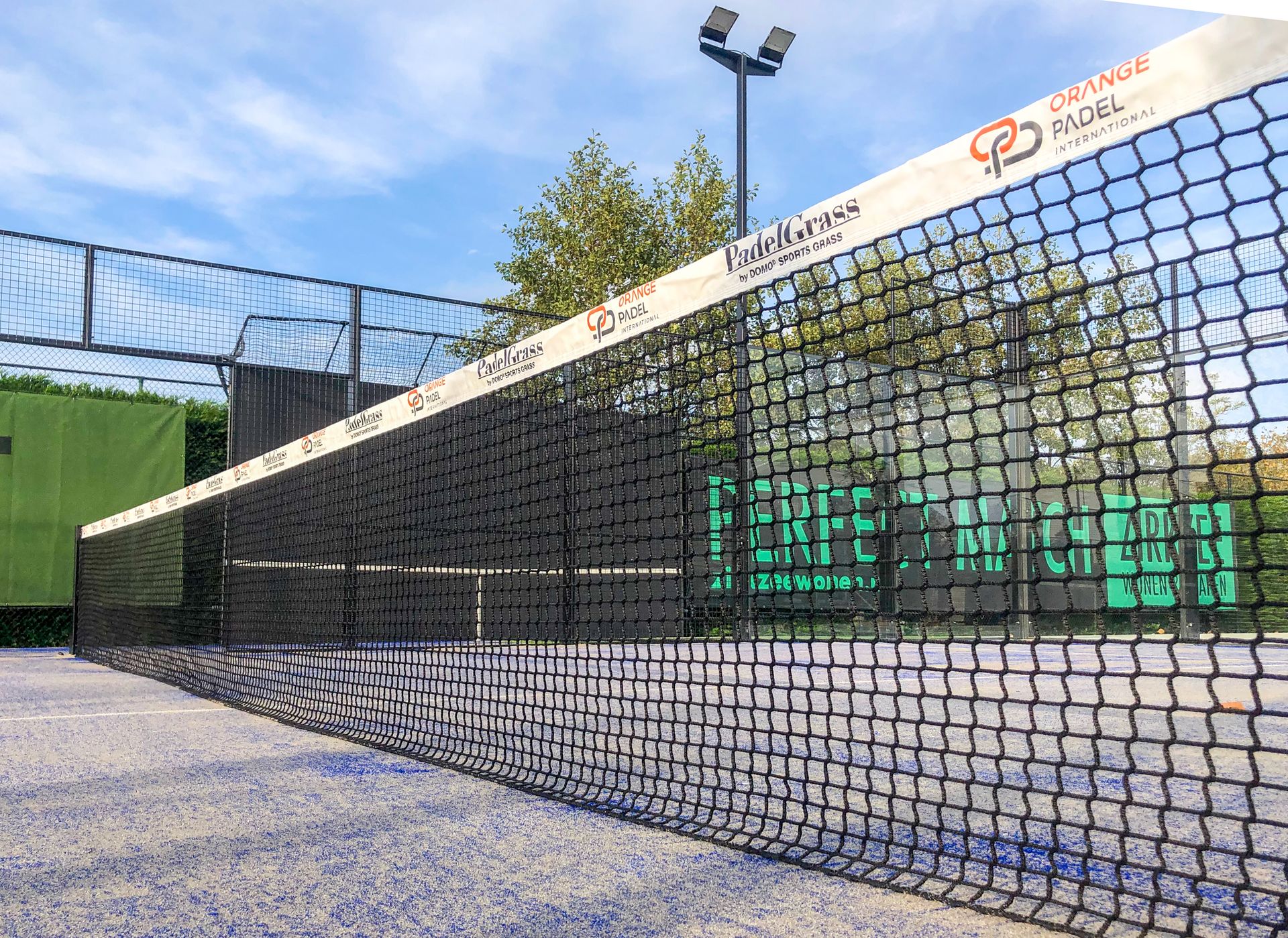

Nett Poles

Including an internal tension system.

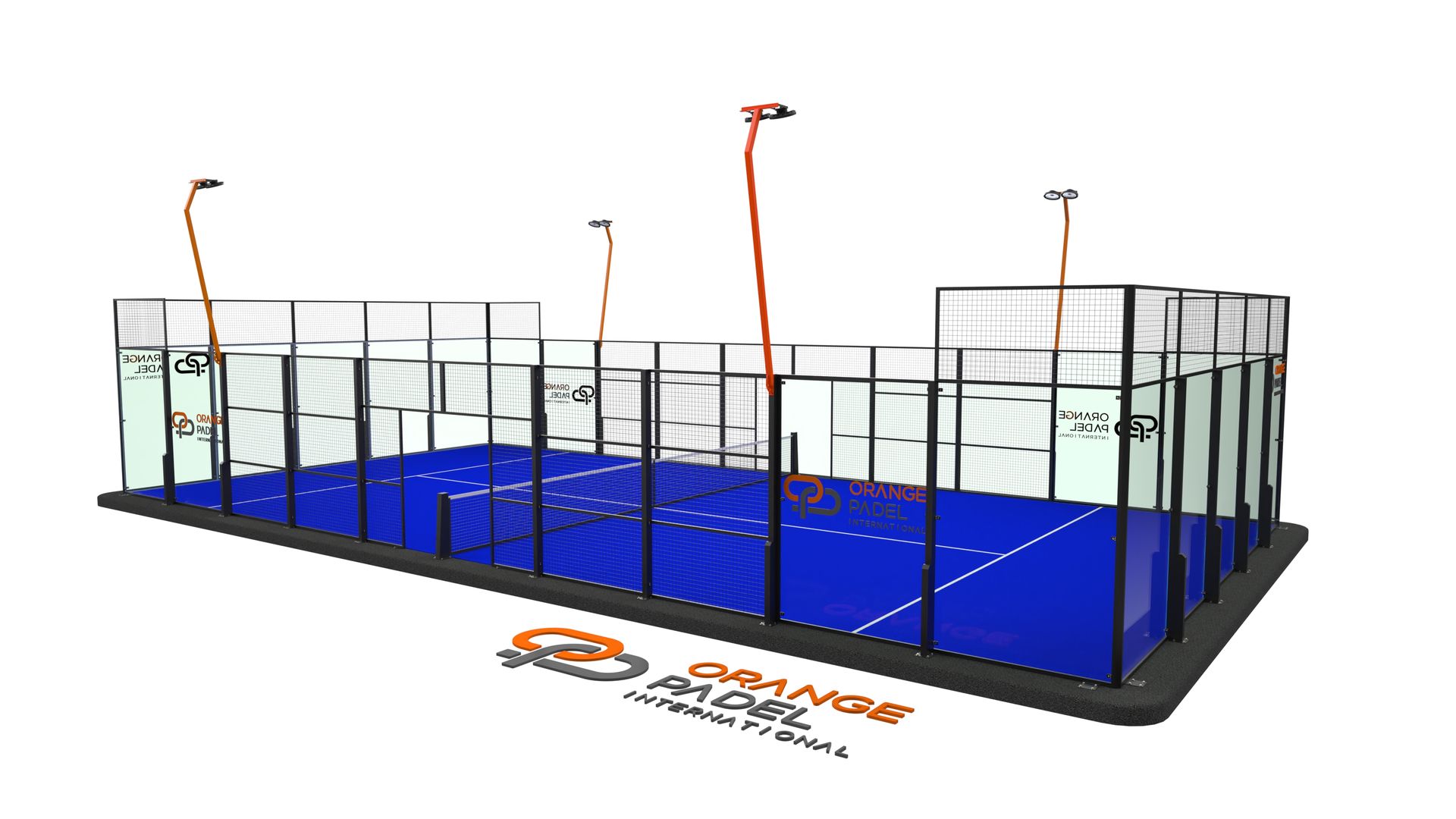

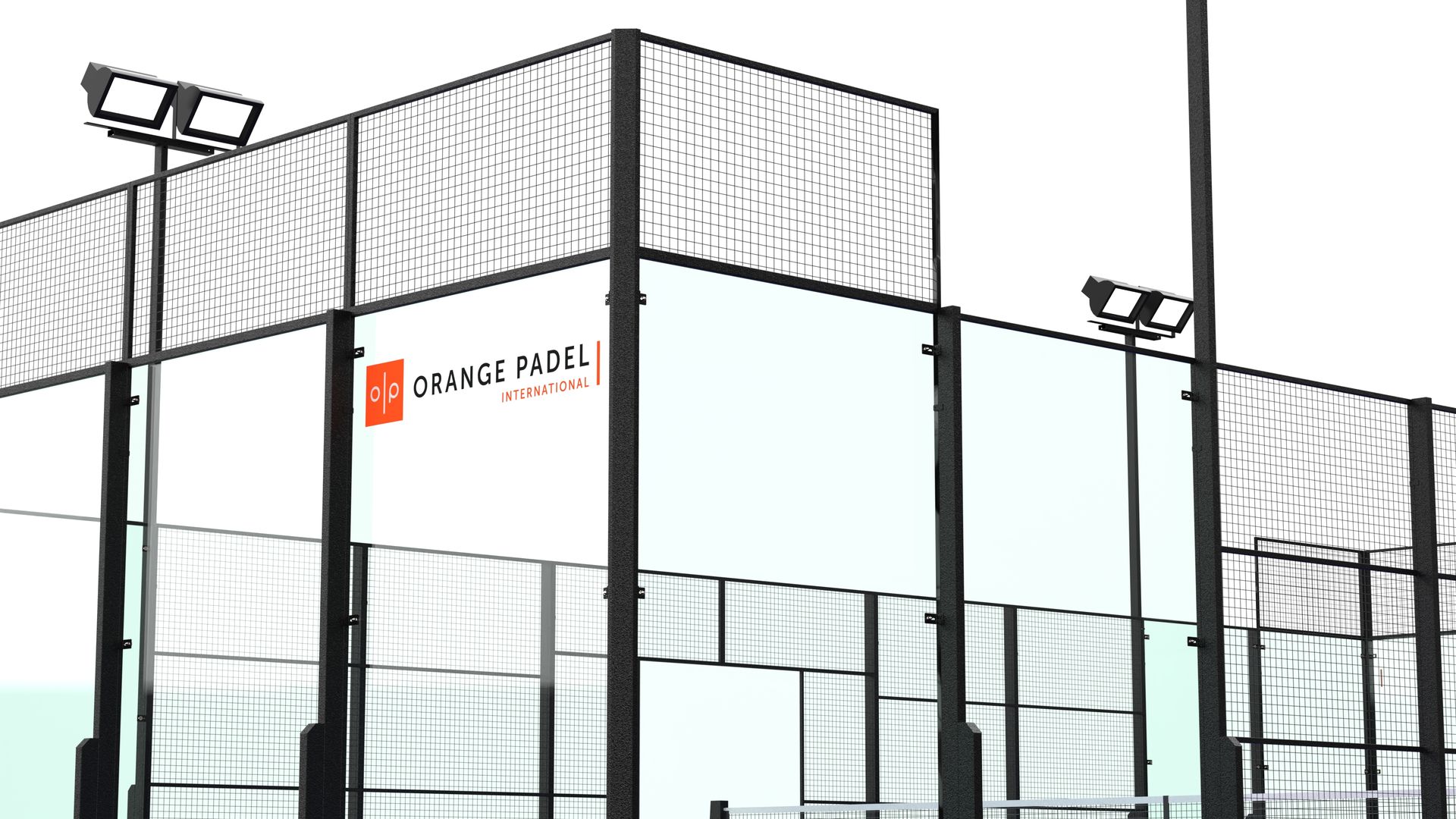

Straight lighting system

8 LED lights 200w especially designed for padel courts, including 3m electric cable and protection fuses. 4 columns of galvanized steel for lighting installation.
