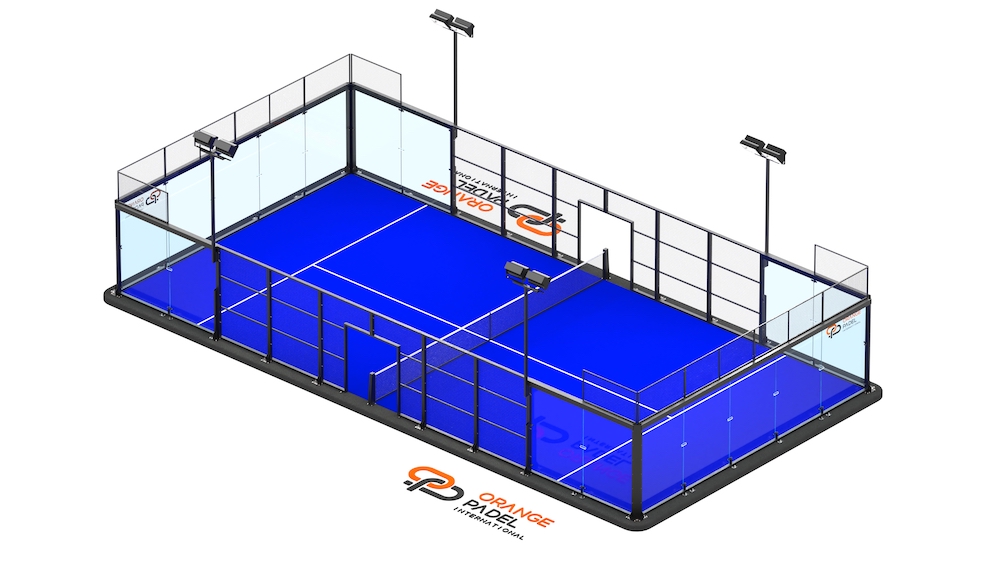

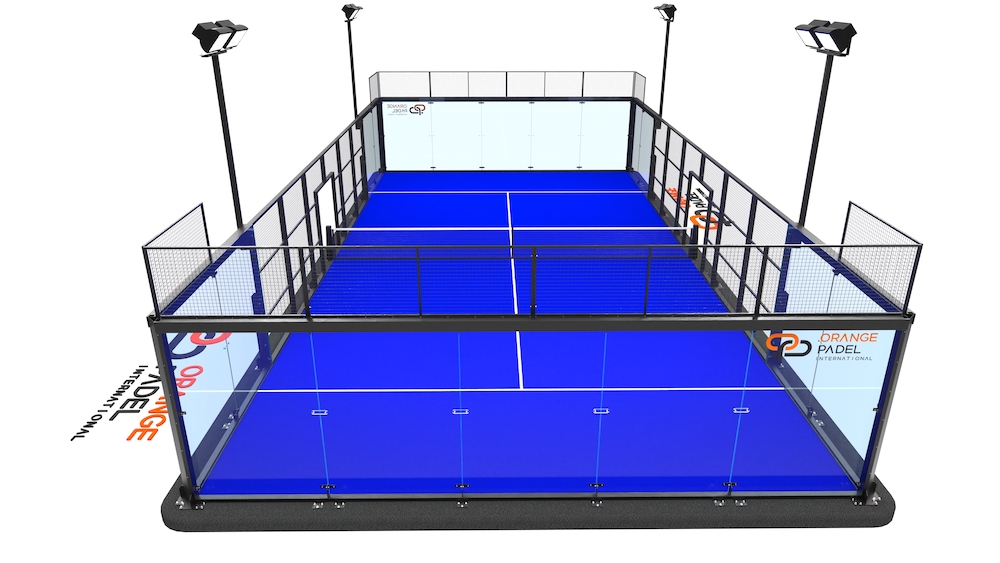

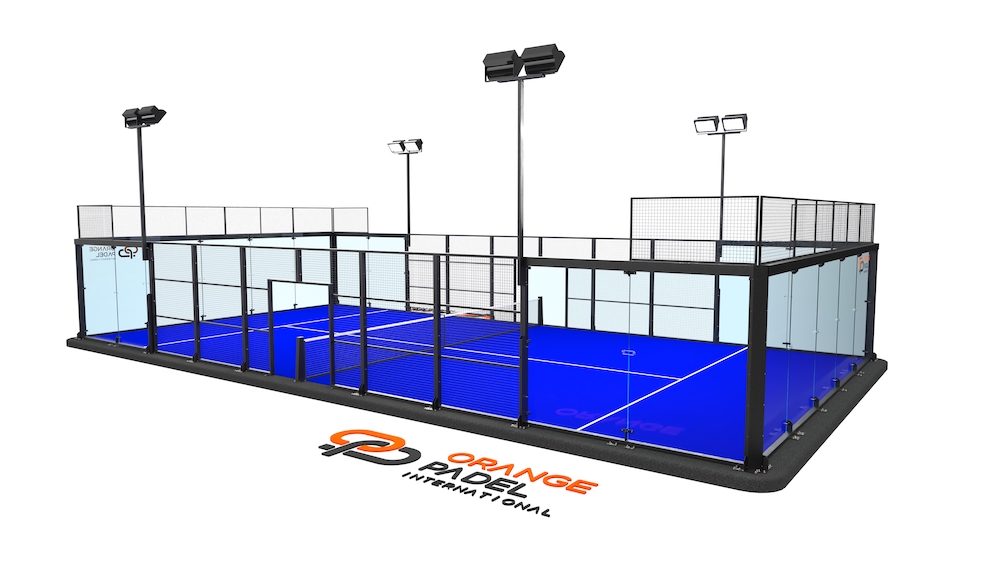

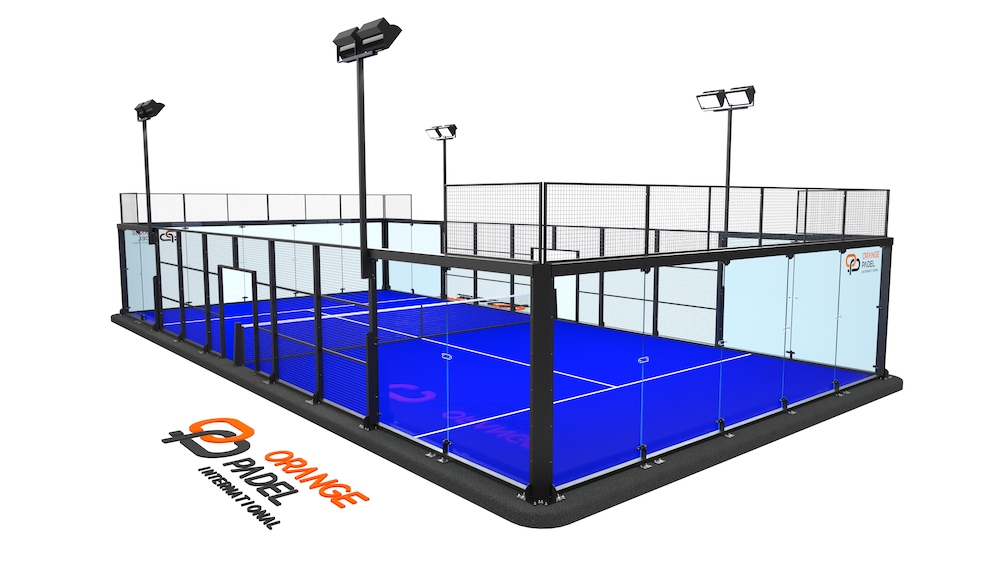

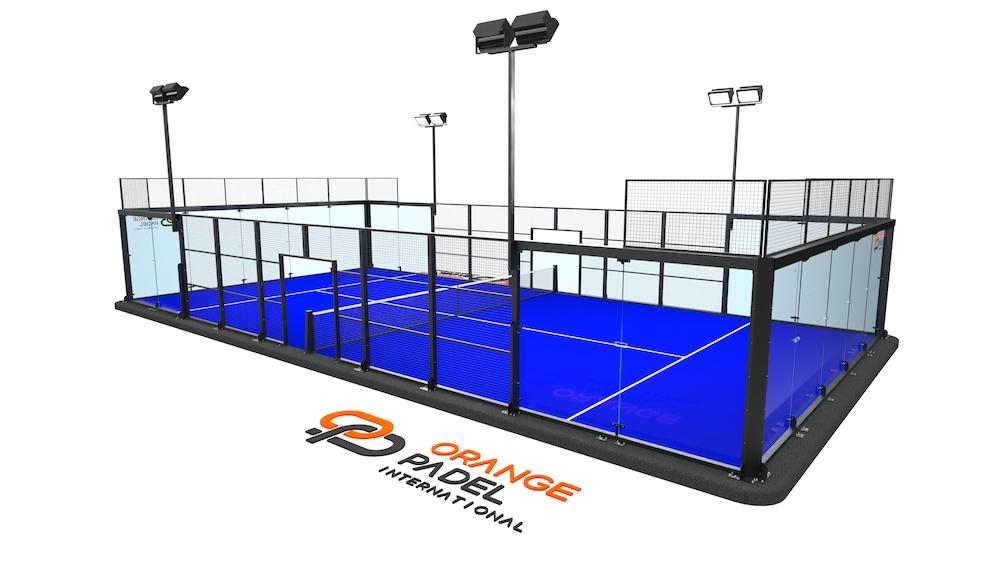

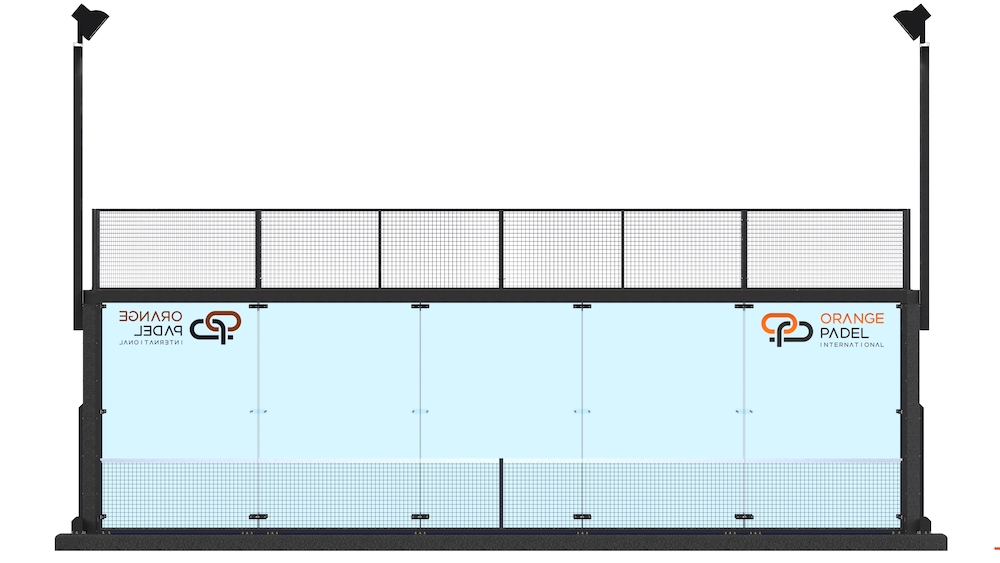

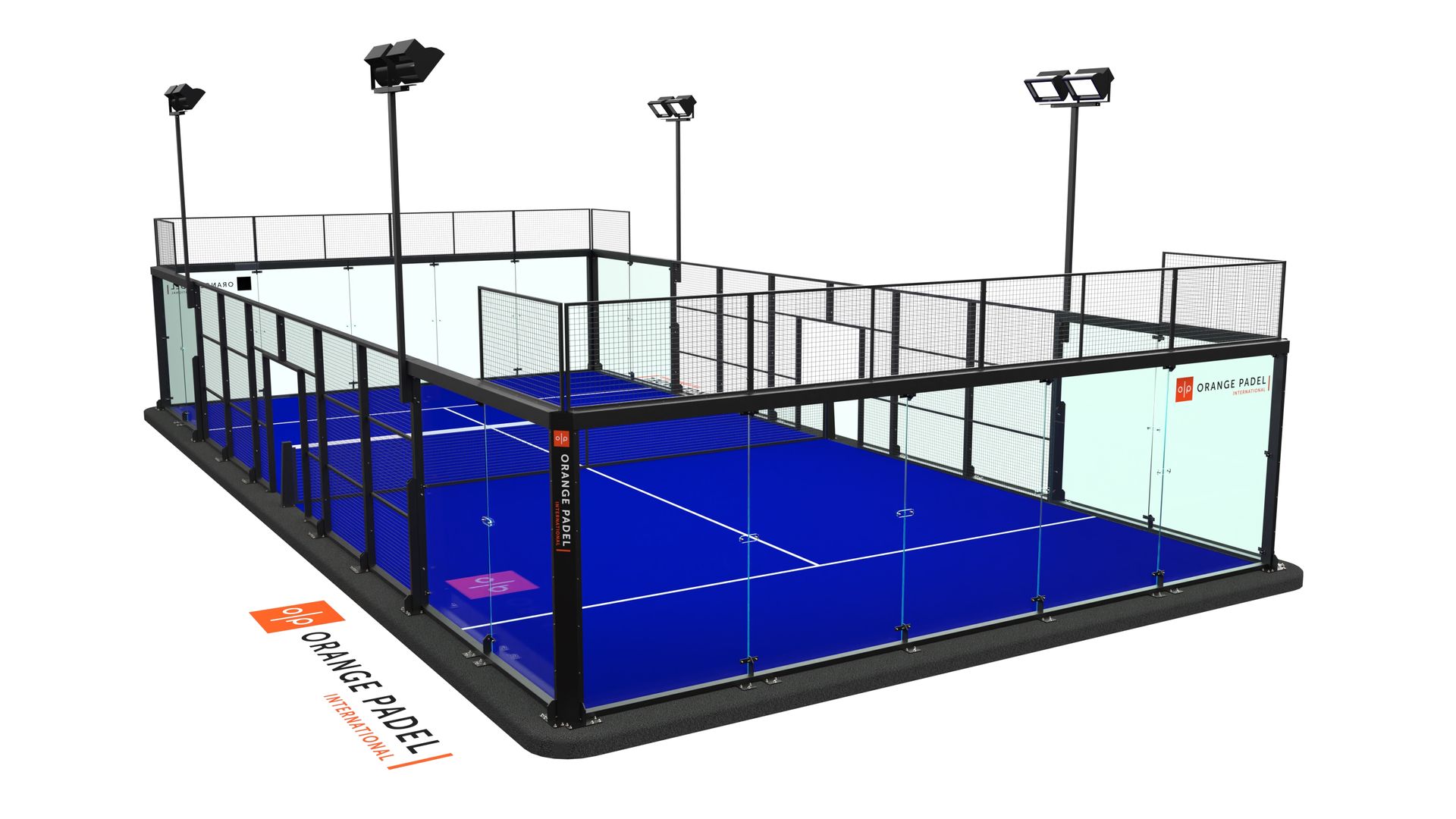

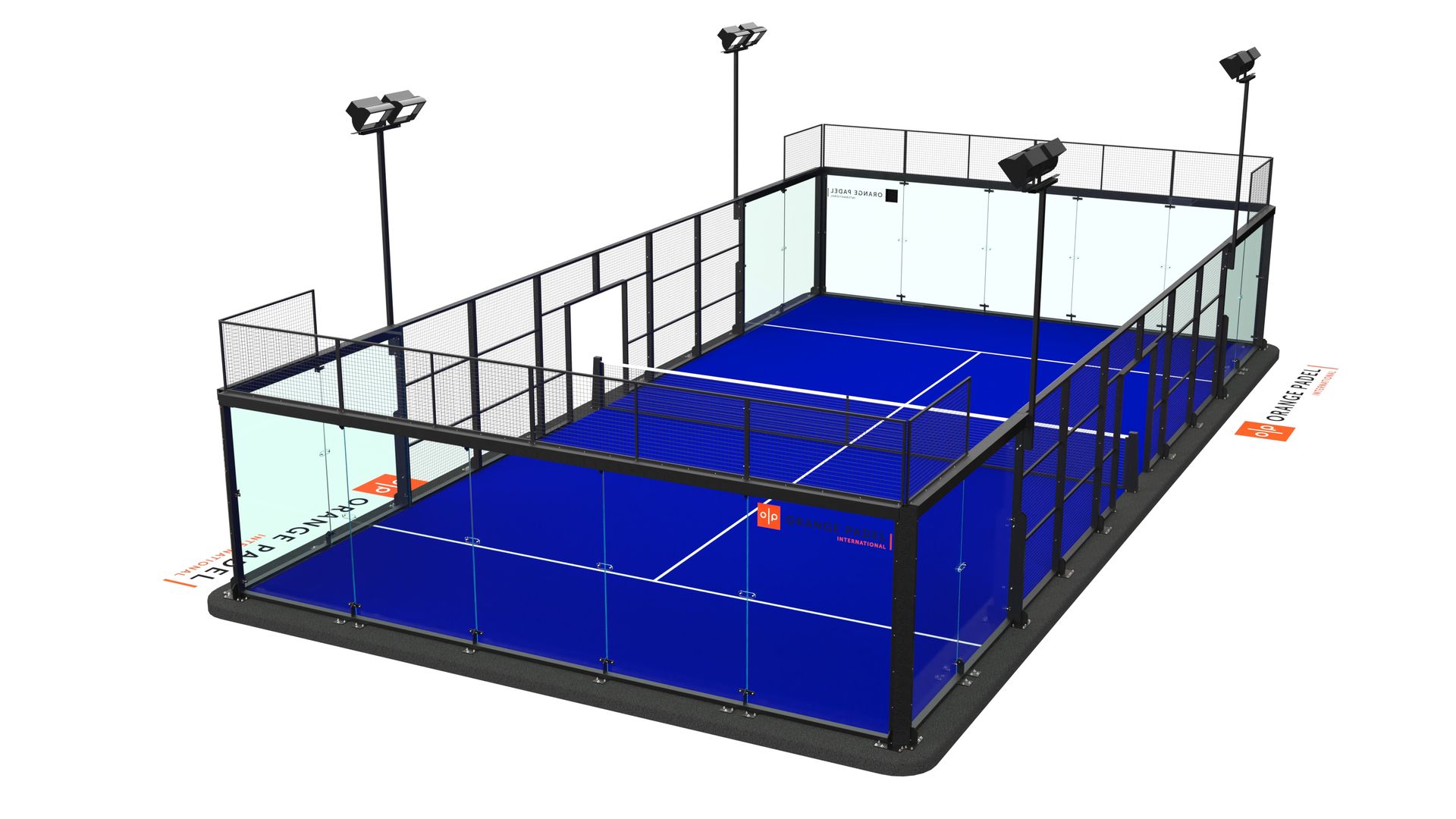

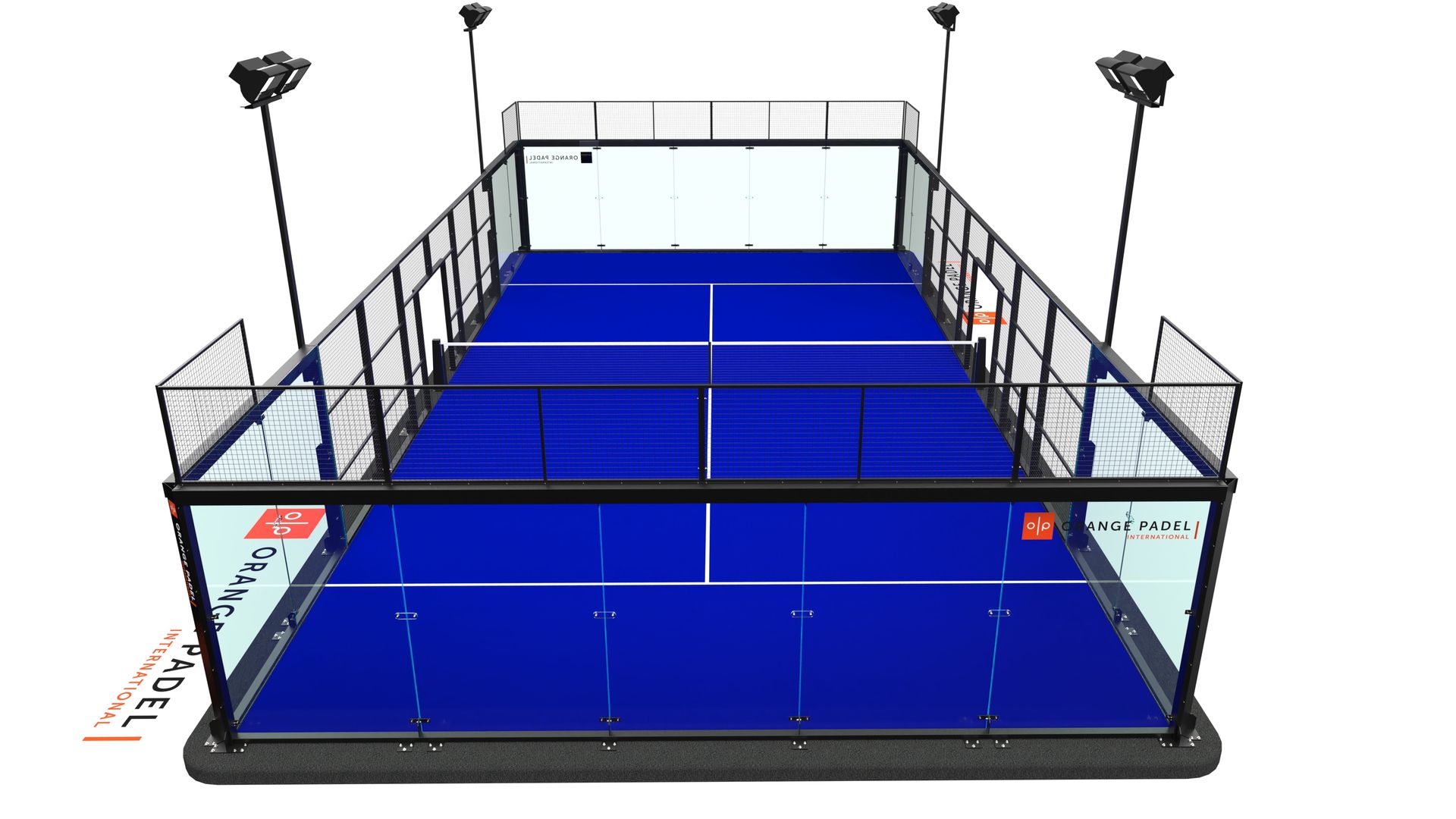

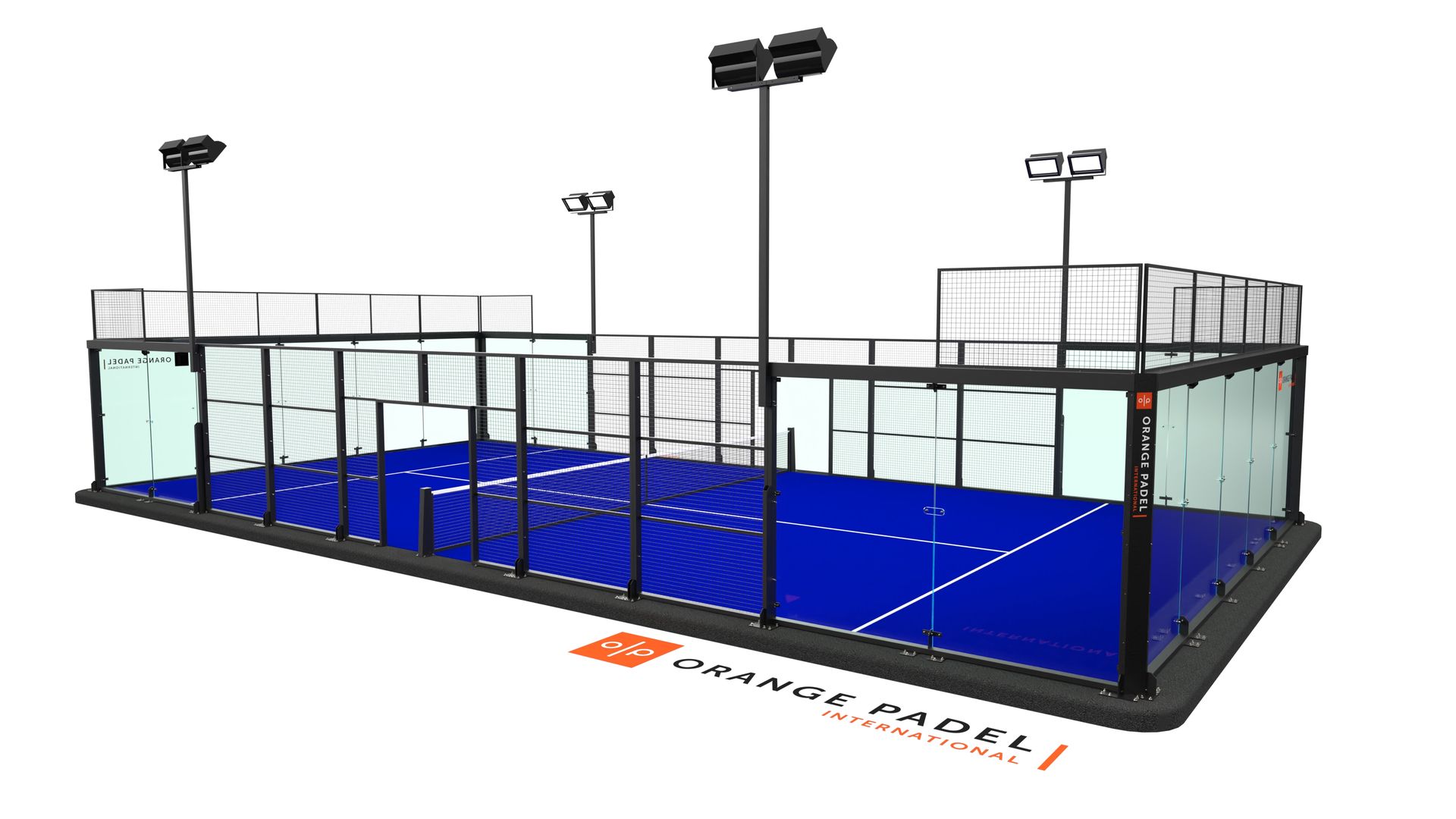

Orange Padel Pano Tour


The Orange Padel Pano Tour KIWA approved court offers the ultimate padel experience for the players as well for the spectators. Perfect choice for clubs  and in combination with the robust steel structure makes the Orange Padel Pano Tour an impressive panorama padel court.


Technical Sheet

Orange Padel Pano Tour

Robust strong KIWA approved panorama court with spectacular view for spectators and players. Unique state of the art design, engineered to meet all today’s requirements and beyond. Extra strengthened steel structure with electro-welded, robotized steel mesh.

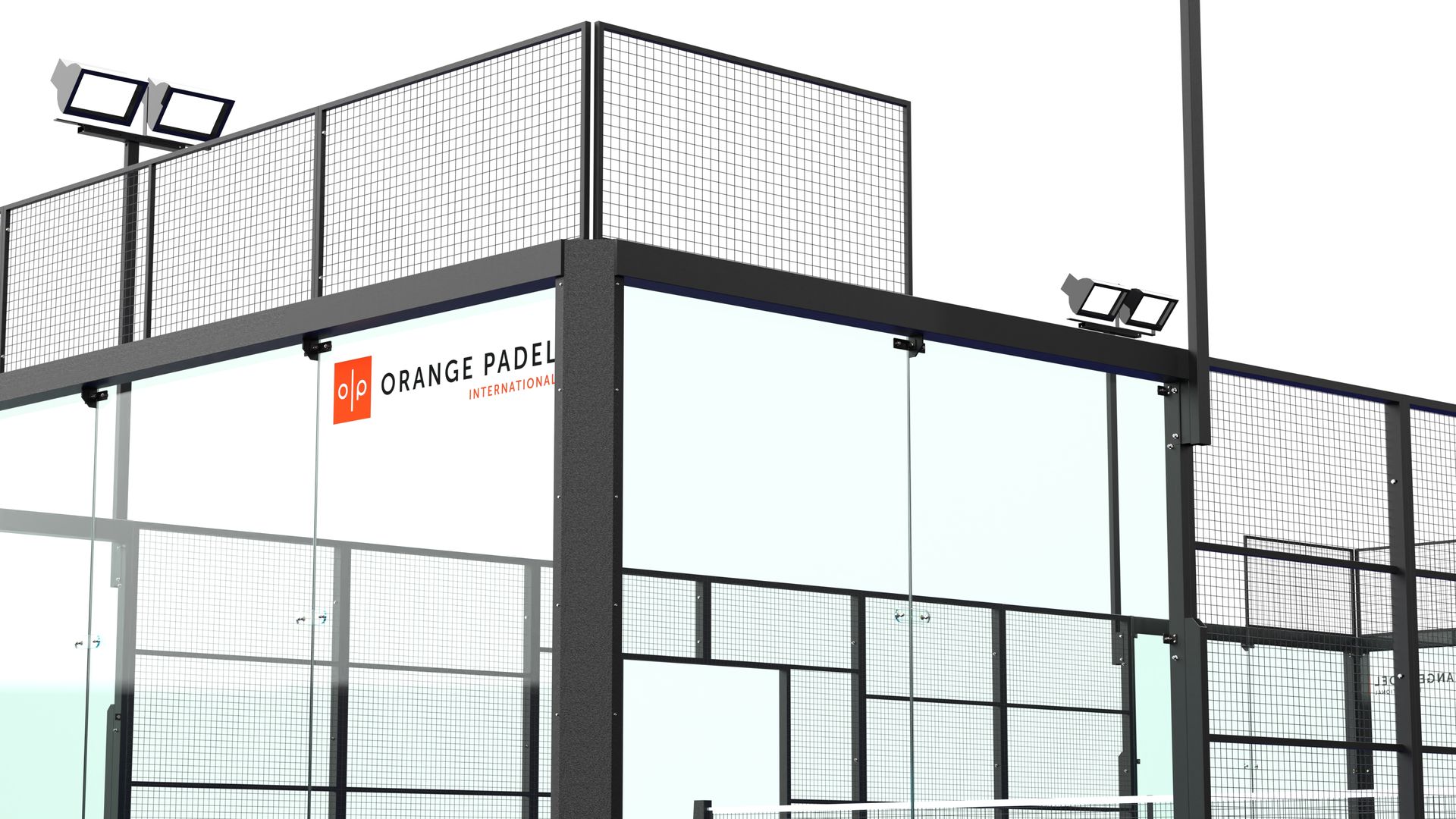

Panorama system

Rigid engineered structural beam for panorama made of galvanized steel with hot dip galvanised anchor plates. Galvanized metal frames made of structural tube 160 x 160mm. 8 frames of 3 x 2m and 4 L-frames of 3 x 2m made of galvanized steel framed in structural tube.

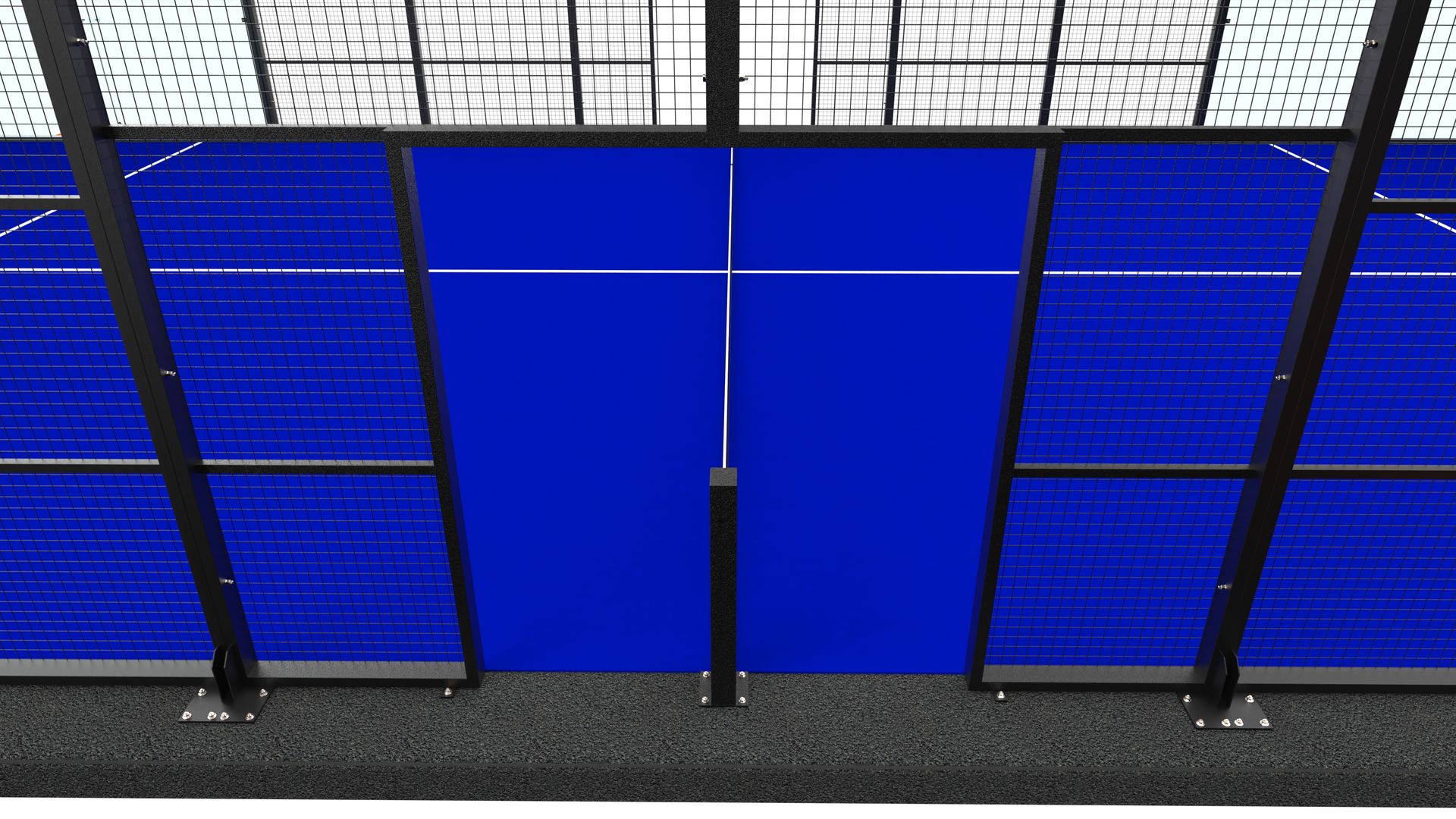

Electro-welded mesh

Electro-welded mesh of 50 x 50 x4 mm reinforced with galvanized structural tube

Glass

Homologated 12mm tempered safety glass .Standard 18 panels of 1995 x 2995mm. All glass panels are produced in compliance with CE, ISO and UNE EN 12150-1 standard

Artificial grass

Orange Padel grass is produced in compliance with ISO 9001 & 14001, 3 options: fibrillated, monofilament and curled

Nett Poles

Including an internal tension system.

Straight lighting system

8 LED lights 200w especially designed for padel courts, including 3m electric cable and protection fuses. 4 columns of galvanized steel for lighting installation.
